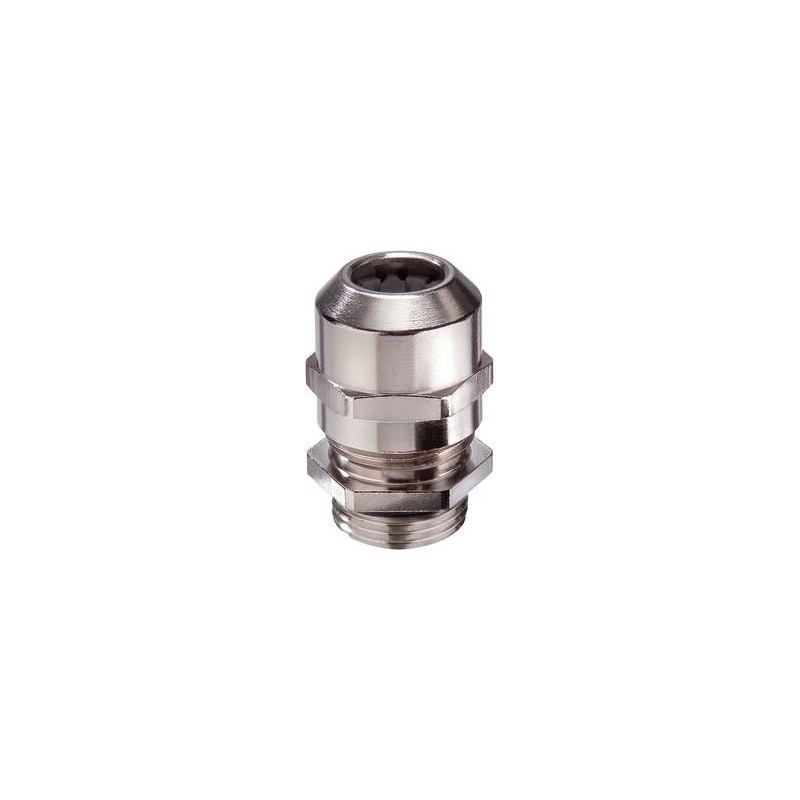

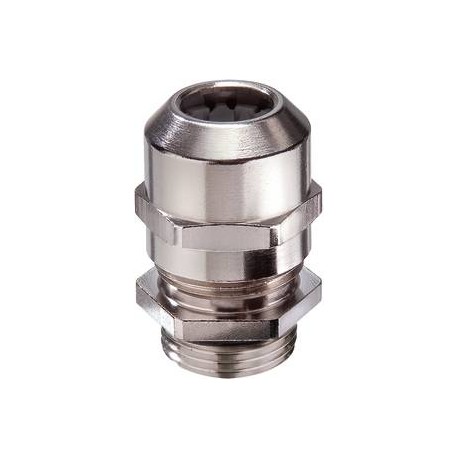

EMSKV 75 RW 10104302 WISKA Metal cable glands, IP68, range from 34 to 48mm, thread M75, EN 45545
EMSKV 75 RW
10104302
WISKA
Metal cable glands, IP68, range from 34 to 48mm, thread M75, EN 45545
Railway cable gland, brass nickel-plated, with short thread, M75
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 75 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Ø cable diameter min | 48 mm |
| Ø cable diameter max | 62 mm |
| Key width SW | 82 mm |
| Collar diameter (E) | 90 mm |
| Total length TL | 67 mm - 81 mm |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Type of cable anchorage | A |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10104302 |
| Type | EMSKV 75 RW |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
| Remarks: Meets fire protection standard EN 45545 and all requirements of Hazard Level 3 with fire resistance E30 | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV 75 RW 10104302 EN_10104302.pdf | 389 Kbytes |
|
