EMSKV 63-75 10101364 WISKA Metal cable gland amplifier, IP68, range from 48 to 62mm, thread M63
EMSKV 63-75
10101364
WISKA

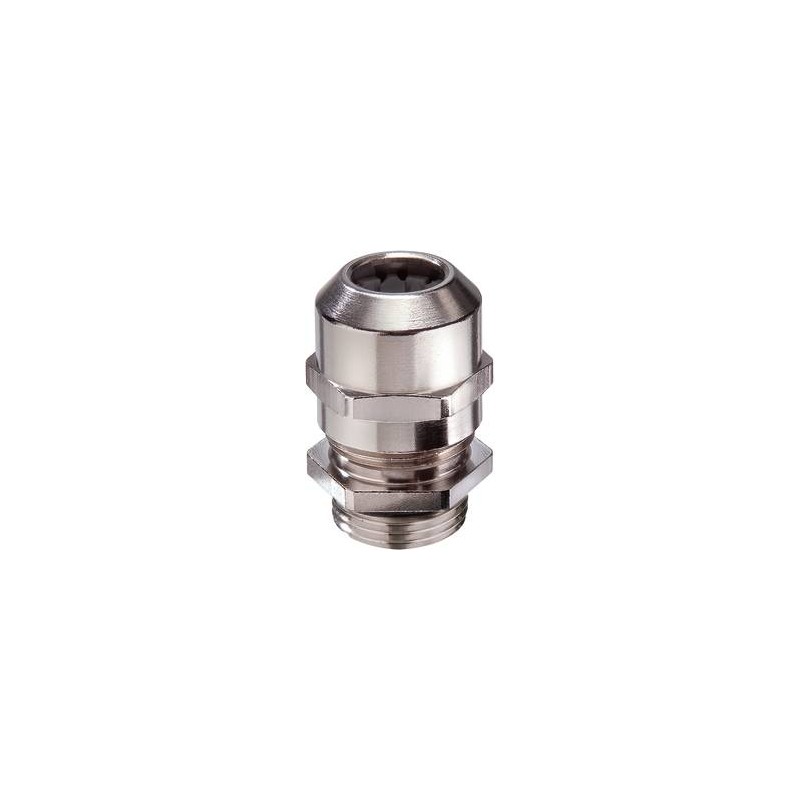

Metal cable gland amplifier, IP68, range from 48 to 62mm, thread M63
Enlarging cable gland, brass nickel-plated, M63-M75
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 48 mm |
| Ø cable diameter max | 62 mm |
| Key width SW | 82 mm |
| Collar diameter (E) | 90 mm |
| Total length TL | 65 mm - 79 mm |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10101364 |
| Packing unit | 1 |
| Type | EMSKV 63-75 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV 63-75 10101364 EN_10101364.pdf | 374 Kbytes |
|
