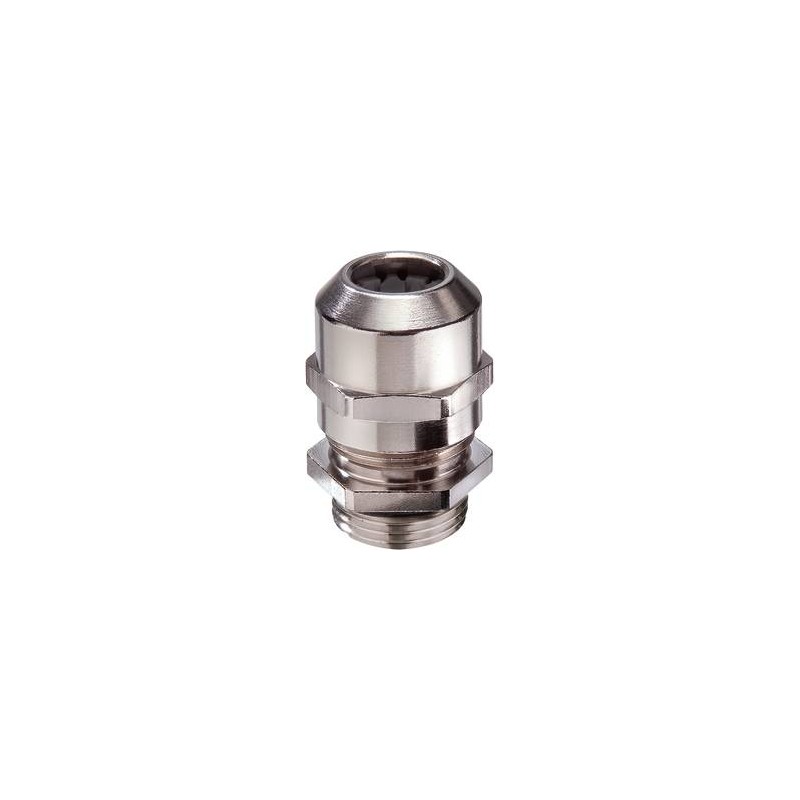

EMSKV 32 LT RW 10105827 WISKA Metal cable glands, IP68, -60o range from 13 to 21mm, thread M32, EN 45545
EMSKV 32 LT RW
10105827
WISKA
25
Metal cable glands, IP68, -60o range from 13 to 21mm, thread M32, EN 45545
Railway cable gland LowTemp, brass nickel-plated with short thread, M32
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Silicone |
| Material clamping cage | Polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 36 mm - 44 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Type of cable anchorage | A |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10105827 |
| Type | EMSKV 32 LT RW |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMSKV 32 LT RW 10105827 EN_10105827.pdf | 390 Kbytes |
|
