EMSKV 32
10065004
WISKA
25

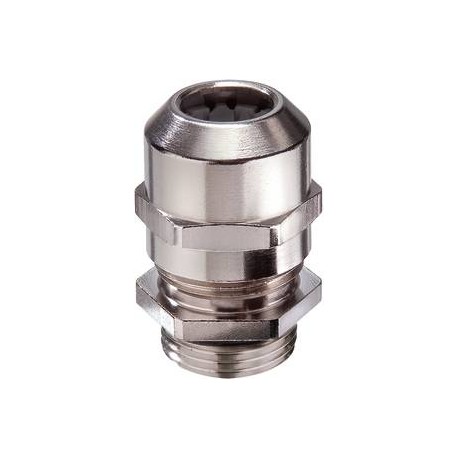

Metal cable glands, IP68, range from 13 to 21mm, thread M32
Cable gland, brass nickel-plated, M32, with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Brass nickel-plated |
Material clamping cage | Polyamide |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Protection class | IP68 (5 bar 30 min), IP69 |
Thread type | M |
Ø Connection thread D | 32 |
Lead | 1,5 |
Length screw-in thread L | 8 mm |
Ø cable diameter min | 13 mm |
Ø cable diameter max | 21 mm |
Ø cable diameter UL | 14,6 mm - 19,5 mm |
Key width SW | 36 mm |
Collar diameter (E) | 40 mm |
Total length TL | 36 mm - 44 mm |
Type of cable anchorage | A |
Install. torques fitting | 20 N m |
Install. torques cap nut | 20 N m |
Impact category | 6 |
Surface | Nickel-plated |
Order no. nickel-plated | 10065004 |
Packing unit | 25 |
Type | EMSKV 32 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
EMSKV 32 10065004 EN_10065004.pdf | 390 Kbytes |
