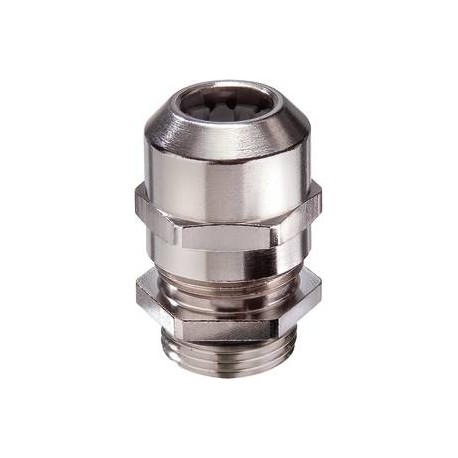

EMSKV 20 LT RW 10105825 WISKA Metal cable glands, IP68, -60o range from 6 to 13mm, thread M20, EN 45545
EMSKV 20 LT RW
10105825
WISKA
50
Metal cable glands, IP68, -60o range from 6 to 13mm, thread M20, EN 45545
Railway cable gland LowTemp, brass nickel-plated with short thread, M20
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Silicone |
| Material clamping cage | Polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 29 mm - 37 mm |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| Type of cable anchorage | A |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10105825 |
| Type | EMSKV 20 LT RW |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV 20 LT RW 10105825 EN_10105825.pdf | 390 Kbytes |
|
