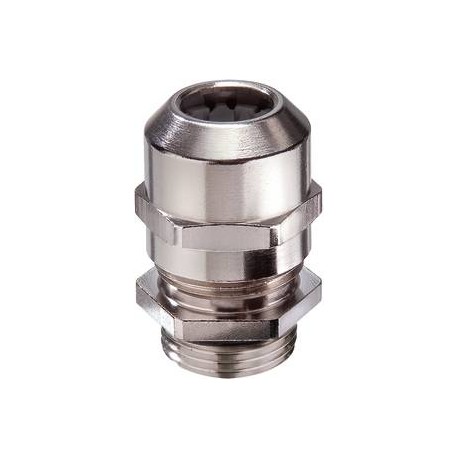

EMSKV 16 RW 10104294 WISKA Metal cable glands, IP68, range from 4.5 to 10mm, thread M16, EN 45545
EMSKV 16 RW
10104294
WISKA
50
Metal cable glands, IP68, range from 4.5 to 10mm, thread M16, EN 45545
Railway cable gland, brass nickel-plated, with short thread, M16
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 26 mm - 34 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Type of cable anchorage | A |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10104294 |
| Type | EMSKV 16 RW |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
| Remarks: Meets fire protection standard EN 45545 and all requirements of Hazard Level 3 with fire resistance E30 | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMSKV 16 RW 10104294 EN_10104294.pdf | 391 Kbytes |
|
