EMSKV 12 EMV-S 10102273 WISKA Metal cable glands, IP68 for "EMC" (interleaved ring), range from 4 to 7mm, th..
EMSKV 12 EMV-S
10102273
WISKA
50

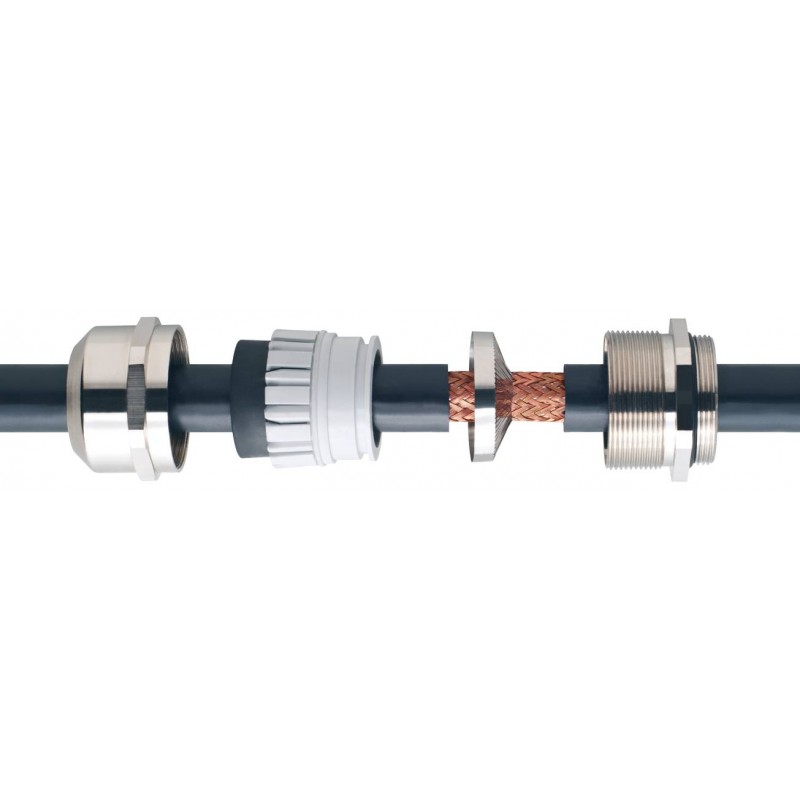

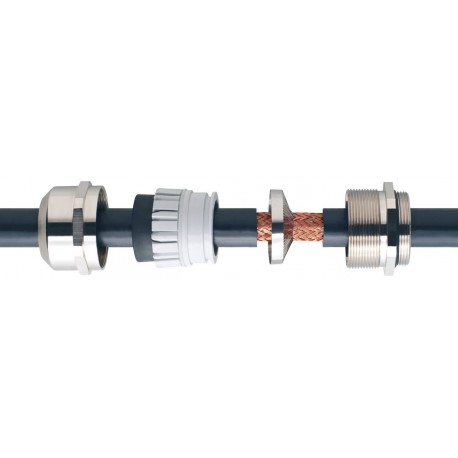

Metal cable glands, IP68 for "EMC" (interleaved ring), range from 4 to 7mm, thread M12
EMC-cable gland, brass nickel-plated with short thread, M12
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Stainless steel 1.4310 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 7 mm |
| Cable Ø shield external | 2 mm - 6 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 23 mm - 30 mm |
| Type of cable anchorage | A |
| Install. torques cap nut | 4 N m |
| Install. torques fitting | 4 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10102273 |
| Type | EMSKV 12 EMV-S |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV 12 EMV-S 10102273 EN_10102273.pdf | 198 Kbytes |
|
