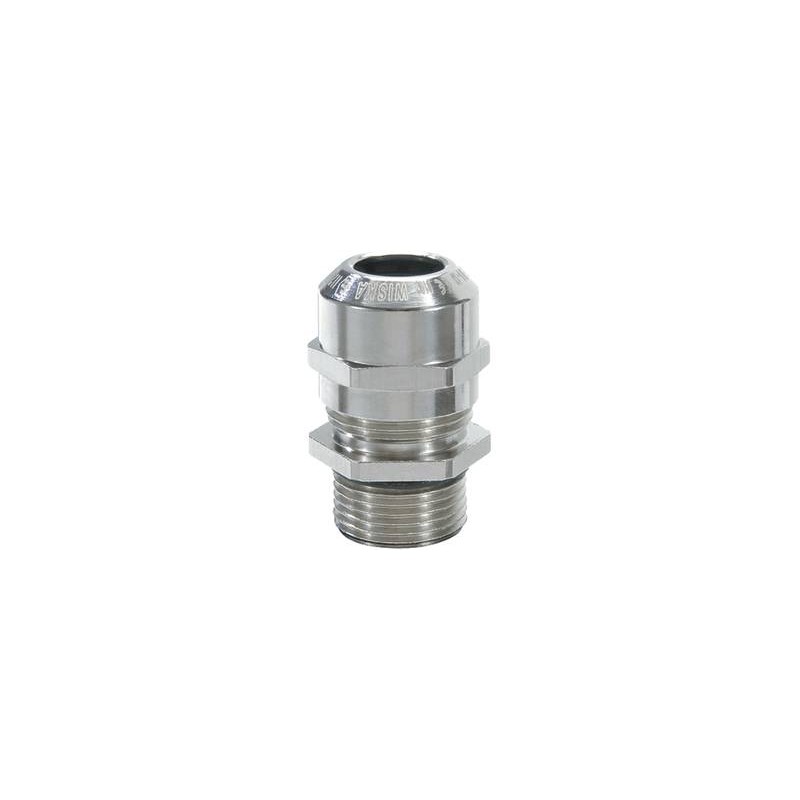

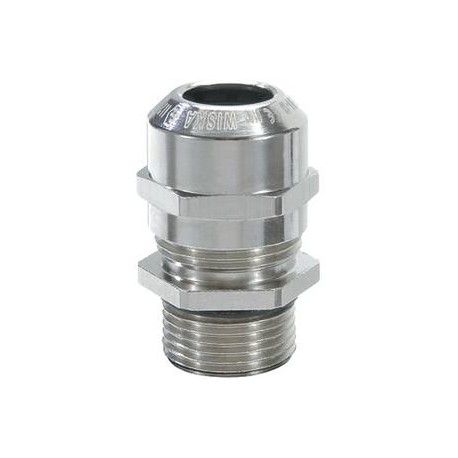

EMSKE-L 50 10065054 WISKA Metal cable glands, "ATEX" IP68, range from 21 to 35mm, long thread M50
EMSKE-L 50
10065054
WISKA
10
Metal cable glands, "ATEX" IP68, range from 21 to 35mm, long thread M50
Ex-cable gland, brass nickel-plated with long thread, M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 21 mm |
| Ø cable diameter max | 35 mm |
| Ø cable diameter UL | 24,3 mm - 33,4 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 61 mm |
| Total length TL | 57 mm - 68 mm |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065054 |
| Type | EMSKE-L 50 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKE-L 50 10065054 EN_10065054.pdf | 329 Kbytes |
|
