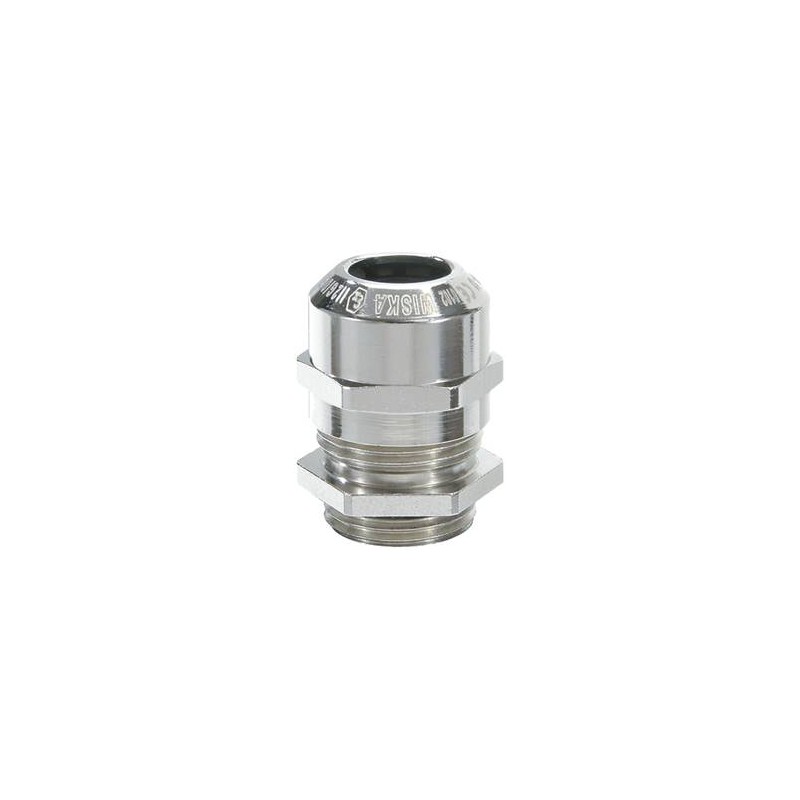

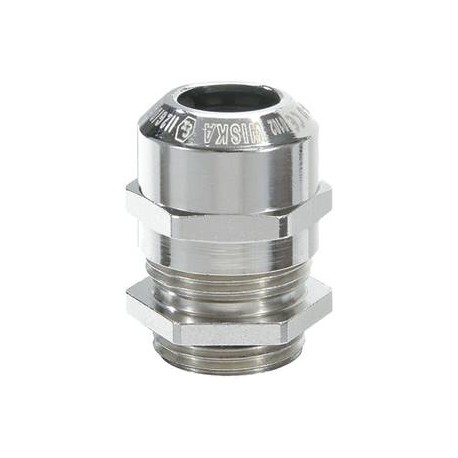

EMSKE 75 10104386 WISKA Metal cable glands, "ATEX" IP68, range from 48 to 62mm, thread M75
EMSKE 75
10104386
WISKA
Metal cable glands, "ATEX" IP68, range from 48 to 62mm, thread M75
Ex-cable gland, brass nickel-plated with short thread, M75
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 75 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 48 mm |
| Ø cable diameter max | 62 mm |
| Key width SW | 82 mm |
| Collar diameter (E) | 90 mm |
| Total length TL | 67 mm - 81 mm |
| Install. torques fitting | 50 N m |
| Install. torques cap nut | 50 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10104386 |
| Type | EMSKE 75 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKE 75 10104386 EN_10104386.pdf | 322 Kbytes |
|
