EMSKE 63
10065047
WISKA
10
Metal cable glands, "ATEX" IP68, range from 34 to 48mm, thread M63

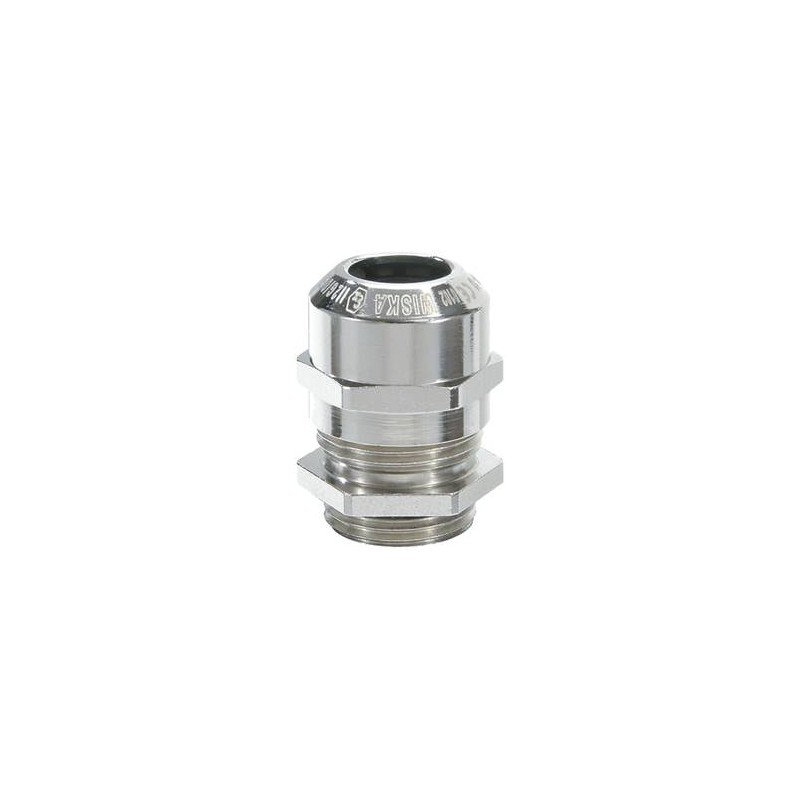

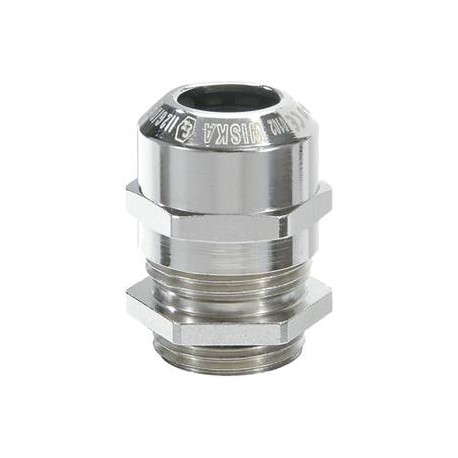

Ex-cable gland, brass nickel-plated with short thread, M63
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Brass nickel-plated |
Material clamping cage | Polyamide |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 75 °C |
Protection class | IP66 / IP68 (5 bar 30 min) |
Type of protection | Ex eb, Ex tb |
Ex-Certificate | ATEX, IECEx |
Thread type | M |
Ø Connection thread D | 63 |
Lead | 1,5 |
Length screw-in thread L | 10 mm |
Ø cable diameter min | 34 mm |
Ø cable diameter max | 48 mm |
Ø cable diameter UL | 38,1 mm - 47,5 mm |
Key width SW | 68 mm |
Collar diameter (E) | 75 mm |
Total length TL | 56 mm - 67 mm |
Install. torques fitting | 40 N m |
Install. torques cap nut | 40 N m |
Surface | Nickel-plated |
Order no. nickel-plated | 10065047 |
Type | EMSKE 63 |
Packing unit | 10 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes | |
PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes | |
PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes | |
EMSKE 63 10065047 EN_10065047.pdf | 330 Kbytes |
