EMSKE 32 EMV-S 10102975 WISKA IP68 "ATEX" metal cable glands for "EMC" (interleaved ring), range 13 to 21mm,..
EMSKE 32 EMV-S
10102975
WISKA
25
IP68 "ATEX" metal cable glands for "EMC" (interleaved ring), range 13 to 21mm, thread M32

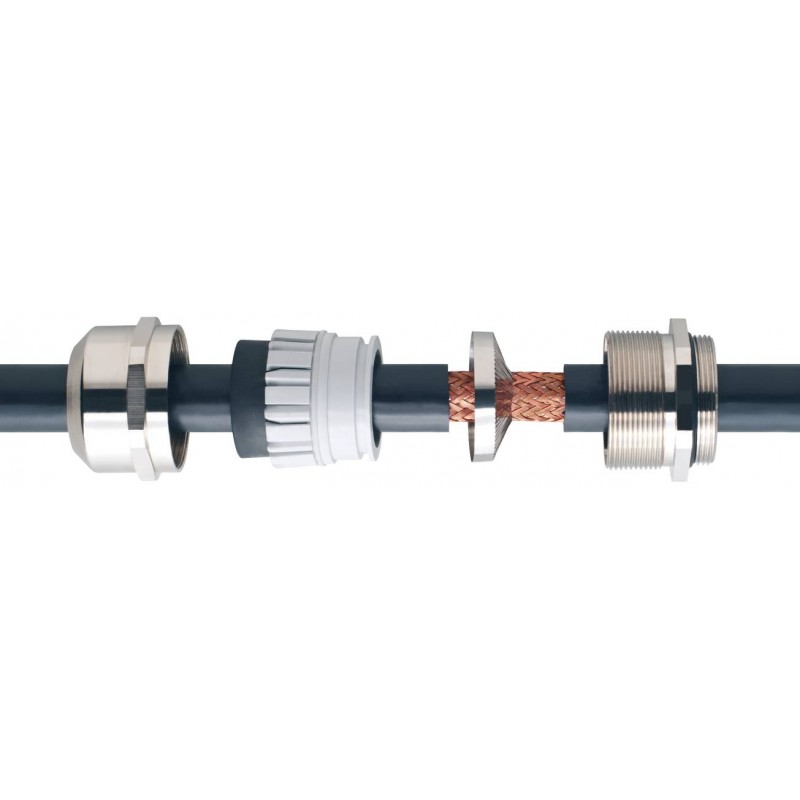

Ex-EMC cable gland with contact spring insert, brass nickel-plated, M32
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex tb, Ex eb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Ø cable below cable shield | 20 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 36 mm - 44 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10102975 |
| Type | EMSKE 32 EMV-S |
| Packing unit | 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKE 32 EMV-S 10102975 EN_10102975.pdf | 251 Kbytes |
|
