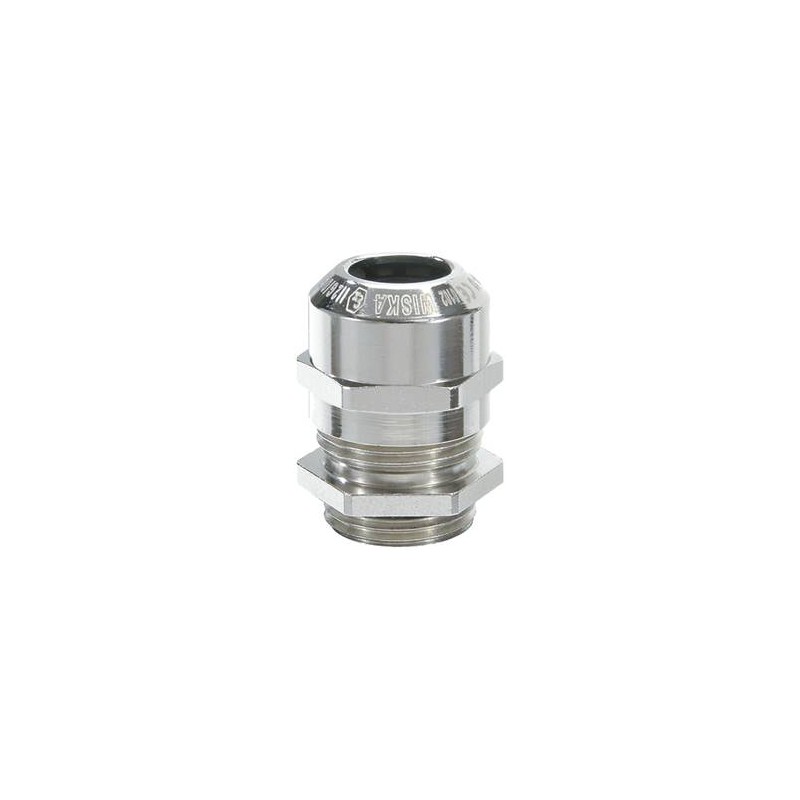

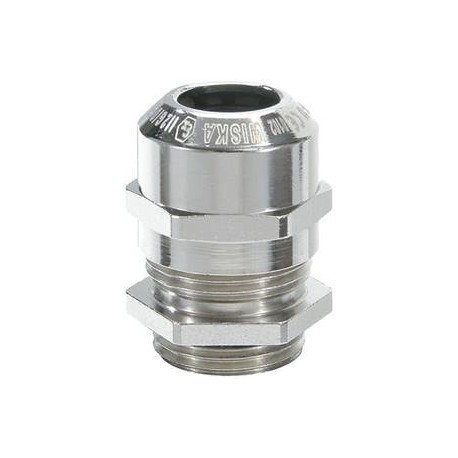

EMSKE 12 10065040 WISKA Metal cable glands, "ATEX" IP68, range from 4 to 7mm, thread M12
EMSKE 12
10065040
WISKA
50
Metal cable glands, "ATEX" IP68, range from 4 to 7mm, thread M12
Ex-cable gland, brass nickel-plated with short thread, M12
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 4 mm |
| Ø cable diameter max | 7 mm |
| Ø cable diameter UL | 4,1 mm - 6 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 23 mm - 30 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065040 |
| Type | EMSKE 12 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKE 12 10065040 EN_10065040.pdf | 329 Kbytes |
|
