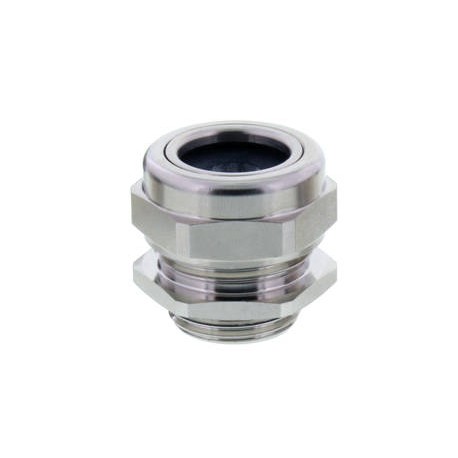

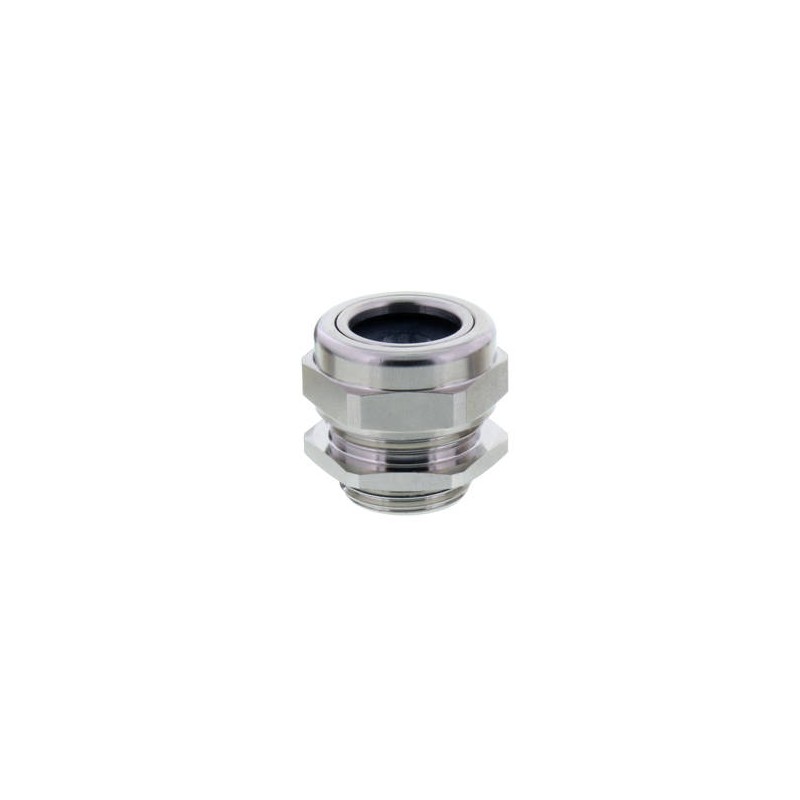

EMCGV 8-050 EMV-Z 10106445 WISKA Metal cable glands, IP68, for "EMC", range from 4 to 5mm, thread M8 -40oC/1..
EMCGV 8-050 EMV-Z
10106445
WISKA
50
Metal cable glands, IP68, for "EMC", range from 4 to 5mm, thread M8 -40oC/120oC EPDM gasket
EMC Compression gland, brass nickel-plated, M8
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 8 |
| Lead | 1,25 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 4 mm |
| Ø cable diameter max | 5,3 mm |
| Key width SW | 11 mm |
| Collar diameter (E) | 12 mm |
| Total length TL | 15 mm - 18,5 mm |
| Order no. nickel-plated | 10106445 |
| Packing unit | 50 |
| Type | EMCGV 8-050 EMV-Z |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMCGV 8-050 EMV-Z 10106445 EN_10106445.pdf | 210 Kbytes |
|
