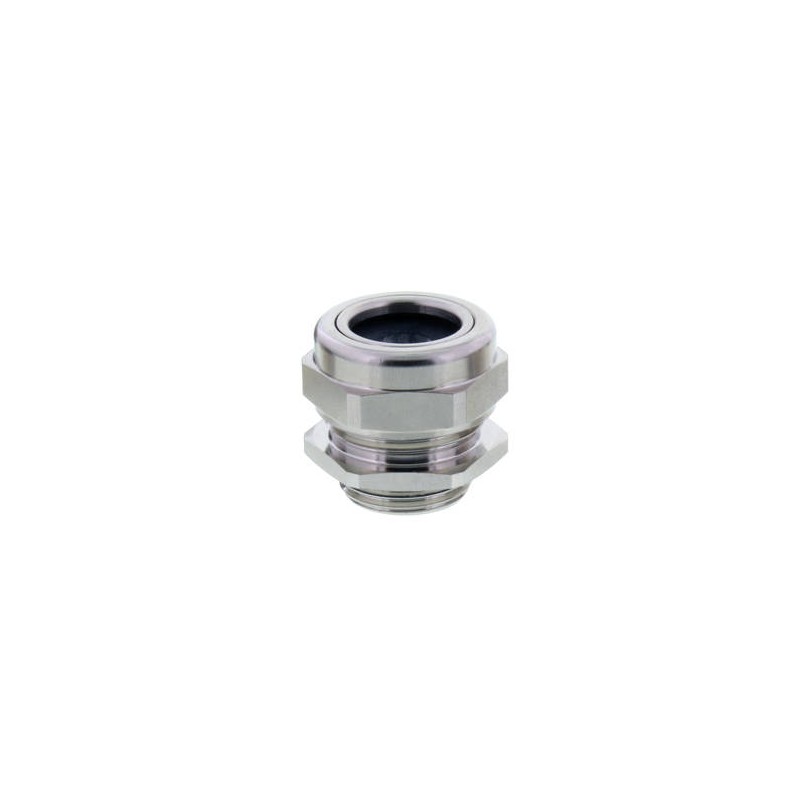

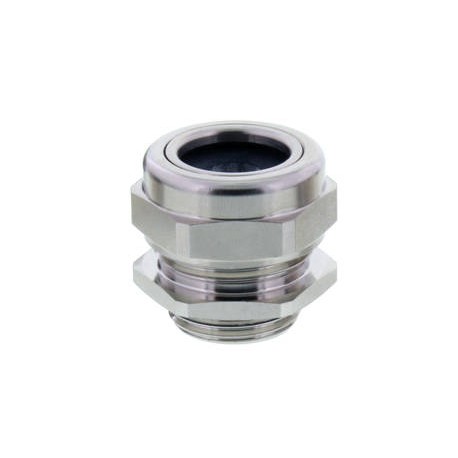

EMCGV 50-360 10106430 WISKA Metal cable glands, IP68, range from 34 to 36mm, thread M40 -40oC/120oC EPDM gas..
EMCGV 50-360
10106430
WISKA
10
Metal cable glands, IP68, range from 34 to 36mm, thread M40 -40oC/120oC EPDM gasket
Compression gland, brass nickel-plated, M50
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 36 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 60 mm |
| Total length TL | 25,5 mm - 30 mm |
| Order no. nickel-plated | 10106430 |
| Packing unit | 10 |
| Type | EMCGV 50-360 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMCGV 50-360 10106430 EN_10106430.pdf | 211 Kbytes |
|
