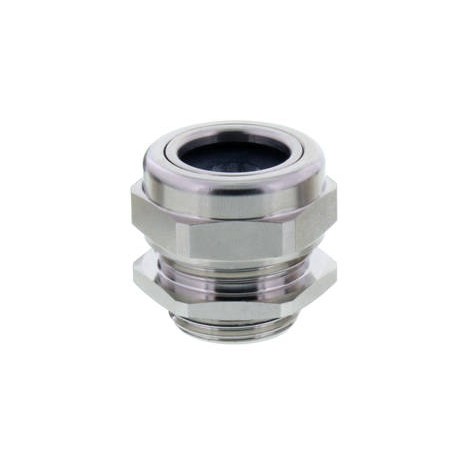

EMCGV 12-030 10106392 WISKA Metal cable glands, IP68, range from 2 to 3mm, thread M12 -40oC/120oC EPDM gasket
EMCGV 12-030
10106392
WISKA
50
Metal cable glands, IP68, range from 2 to 3mm, thread M12 -40oC/120oC EPDM gasket
Compression gland, brass nickel-plated, M12
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 2 mm |
| Ø cable diameter max | 3 mm |
| Key width SW | 18 mm |
| Collar diameter (E) | 20 mm |
| Total length TL | 20,5 mm - 24,5 mm |
| Order no. nickel-plated | 10106392 |
| Packing unit | 50 |
| Type | EMCGV 12-030 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMCGV 12-030 10106392 EN_10106392.pdf | 210 Kbytes |
|
