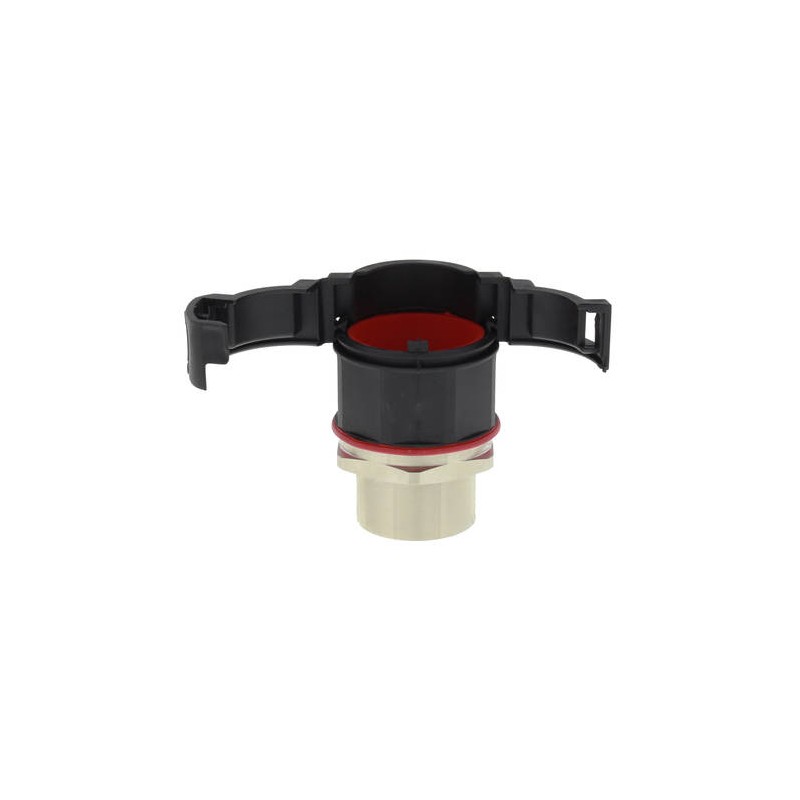

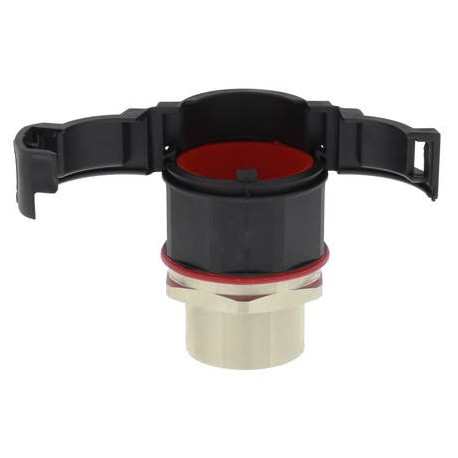

EMBFSI-48-50/B 10106929 WISKA Ip68 black PA female swivel fitting for DN48/54 tube, M50 metal thread
EMBFSI-48-50/B
10106929
WISKA
5
Ip68 black PA female swivel fitting for DN48/54 tube, M50 metal thread
Conduit fitting, internal thread, plastic/brass nickel-plated, RAL 9005, NW48
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | Brass nickel-plated |
| Material sealing gasket | TPU |
| Protection class | IP66, IP68 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 48 |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 13 mm |
| Ø closure VD | 68 mm |
| Ø inside | 42,5 mm |
| Key width SW1 | 60 mm |
| Key width SW2 | 65 mm |
| Total length TL | 62,7 mm |
| Type of conduit fitting | straight |
| UL 1696 | Yes |
| Product Color | RAL 9005 |
| Type | EMBFSI-48-50-BK |
| Order no. RAL 9005 | 10106929 |
| Packing unit | 5 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMBFSI-48-50/B 10106929 EN_10106929.pdf | 247 Kbytes |
|
