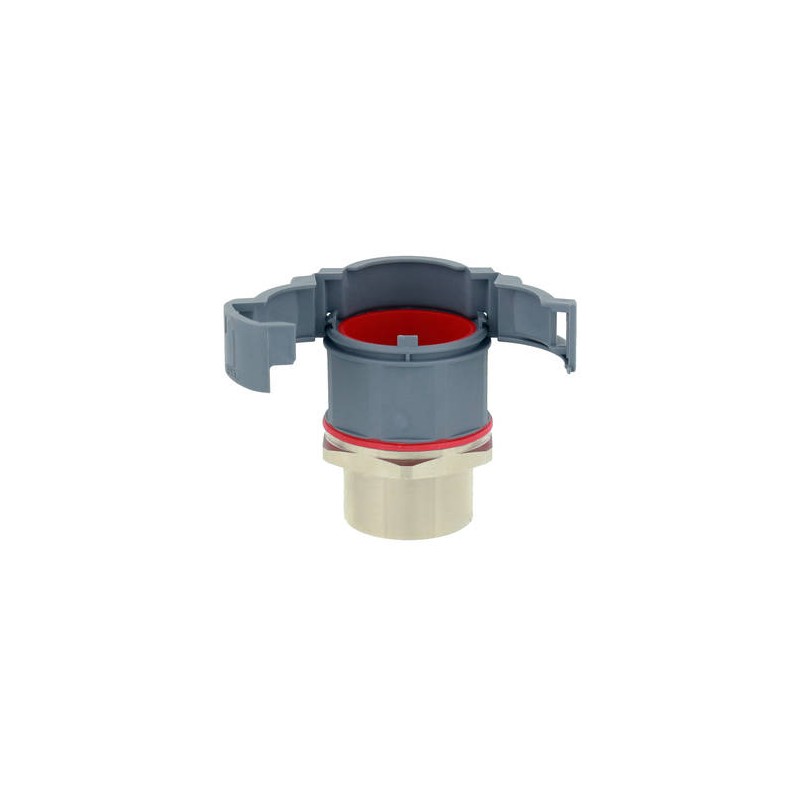

EMBFSI-29-32/G 10106919 WISKA IP68 grey PA female swivel fitting for DN29/34 tube, M32 metal thread
EMBFSI-29-32/G
10106919
WISKA
25
IP68 grey PA female swivel fitting for DN29/34 tube, M32 metal thread
Conduit fitting, internal thread, plastic/brass nickel-plated, RAL 7031, NW29
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | Brass nickel-plated |
| Material sealing gasket | TPU |
| Protection class | IP68, IP66 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 29 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 13 mm |
| Ø closure VD | 47,3 mm |
| Ø inside | 26 mm |
| Key width SW1 | 41 mm |
| Key width SW2 | 46 mm |
| Total length TL | 60,9 mm |
| Type of conduit fitting | straight |
| UL 1696 | Yes |
| Product Color | RAL 7031 |
| Type | EMBFSI-29-32-BG |
| Order no. RAL 7031 | 10106919 |
| Packing unit | 25 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMBFSI-29-32/G 10106919 EN_10106919.pdf | 258 Kbytes |
|
