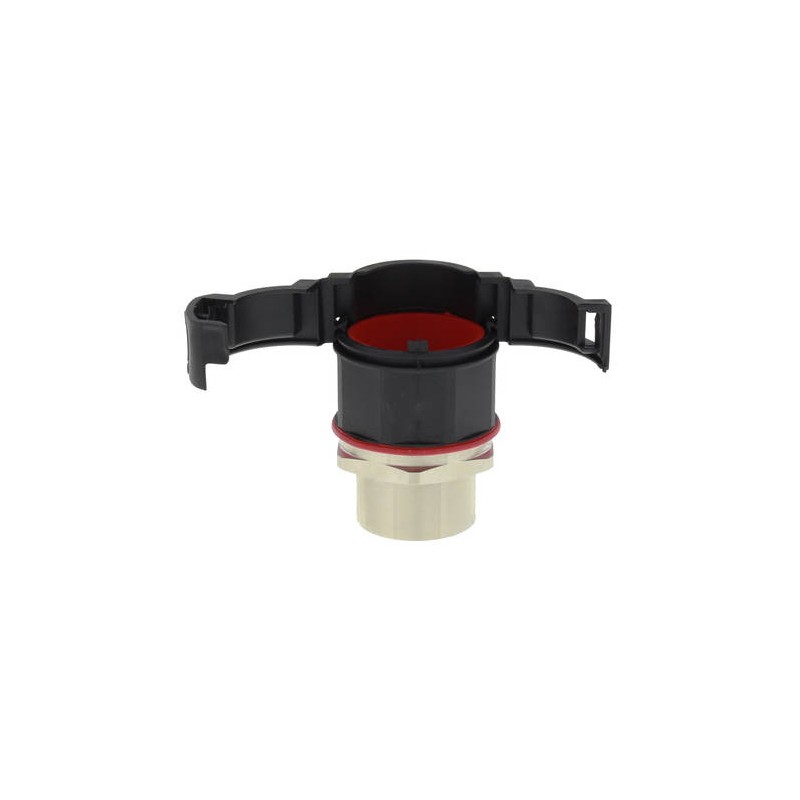

EMBFSI-12-16/B 10106923 WISKA IP68 black PA female swivel fitting for DN12/16 tube, M16 metal thread
EMBFSI-12-16/B
10106923
WISKA
50
IP68 black PA female swivel fitting for DN12/16 tube, M16 metal thread
Conduit fitting, internal thread, plastic/brass nickel-plated, RAL 9005, NW12
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | Brass nickel-plated |
| Material sealing gasket | TPU |
| Protection class | IP66, IP68 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 12 |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø closure VD | 27,5 mm |
| Ø inside | 11,6 mm |
| Key width SW1 | 22 mm |
| Key width SW2 | 24 mm |
| Total length TL | 48,8 mm |
| Type of conduit fitting | straight |
| UL 1696 | Yes |
| Product Color | RAL 9005 |
| Type | EMBFSI-12-16-BK |
| Order no. RAL 9005 | 10106923 |
| Packing unit | 50 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMBFSI-12-16/B 10106923 EN_10106923.pdf | 247 Kbytes |
|
