EKVM 45/50-W30/lb 10016342 WISKA Hexagonal cable glands." EMC" Met.DIN 89280, IP54 thread M50, range 28 to 3..
EKVM 45/50-W30/lb
10016342
WISKA
Hexagonal cable glands." EMC" Met.DIN 89280, IP54 thread M50, range 28 to 30.5

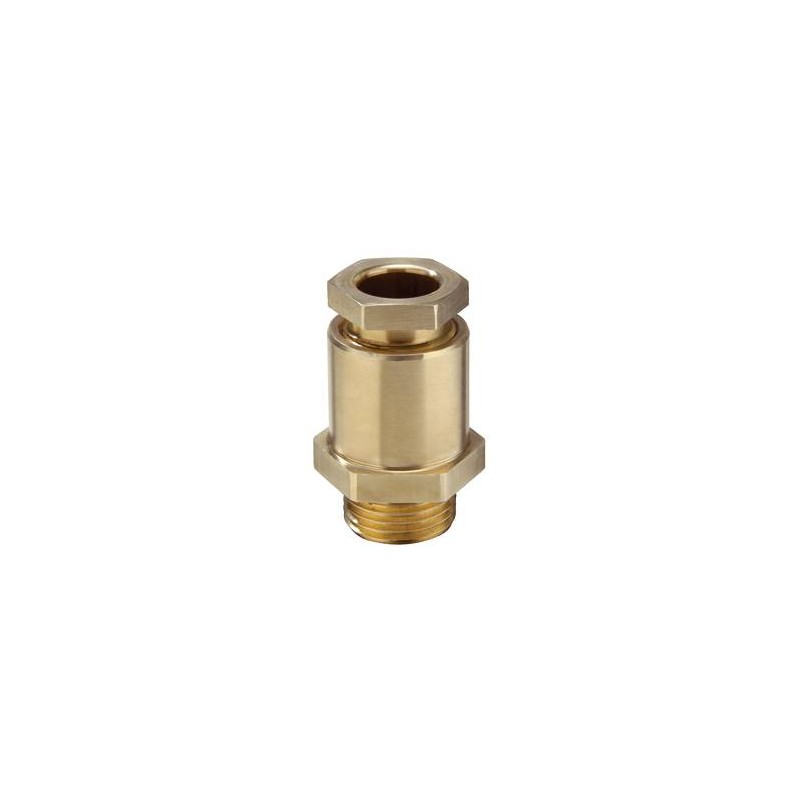

Cable gland, brass, DIN 89280, M45-M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 14 mm |
| Ø cable diameter min | 28 mm |
| Ø cable diameter max | 30,5 mm |
| Key width SW1 | 46 mm |
| Key width SW2 | 55 mm |
| Collar diameter E1 | 50 mm |
| Collar diameter E2 | 61 mm |
| Total length TL | 59 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 15 N m |
| Surface | Bright |
| Order no. bright | 10016342 |
| Type | EKVM 45/50-W30 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EKVM 45/50-W30/lb 10016342 EN_10016342.pdf | 307 Kbytes |
|
