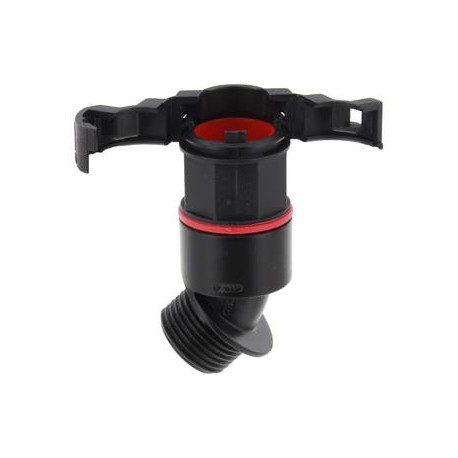

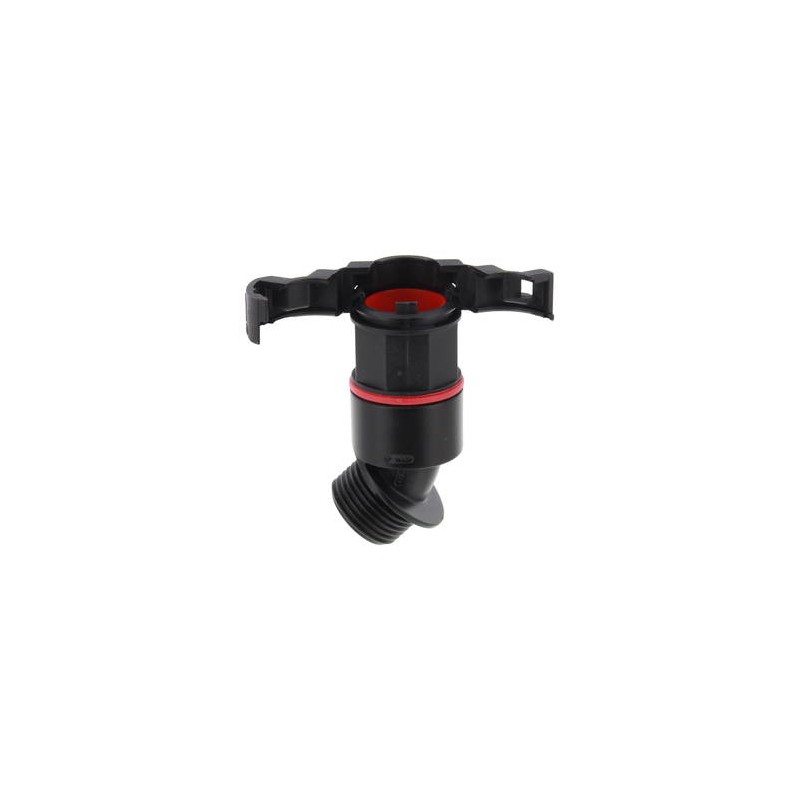

EBF45-29-40/B 10108880 WISKA Ip68 black 45o PA elbow fitting for DN29/34 tube, M40 thread
EBF45-29-40/B
10108880
WISKA
25
Ip68 black 45o PA elbow fitting for DN29/34 tube, M40 thread
Conduit fitting, 45° angle, plastic, RAL 9005, NW 29 / M40
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | polyamide UL94-V0 |
| Material sealing gasket | TPU |
| Protection class | IP68, IP66 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 29 |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 14,5 mm |
| Ø inside | 26 mm |
| Ø Gasket F | 50 mm |
| Key width SW | 41 mm |
| Width B | 87,2 mm |
| Total length TL | 85,8 mm |
| Type of conduit fitting | 45° Angle |
| UL 1696 | Yes |
| Product Color | RAL 9005 |
| Type | EBF45-29-40-BK |
| Order no. RAL 9005 | 10108880 |
| Packing unit | 10 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EBF45-29-40/B 10108880 EN_10108880.pdf | 270 Kbytes |
|
