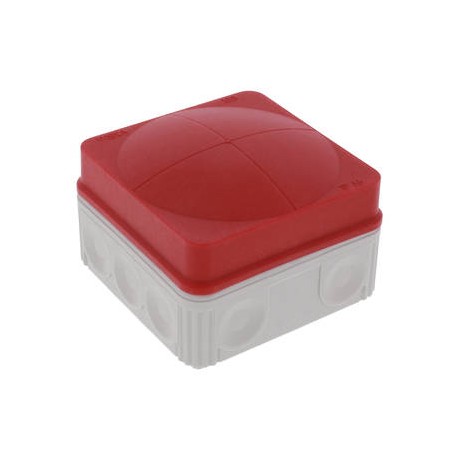

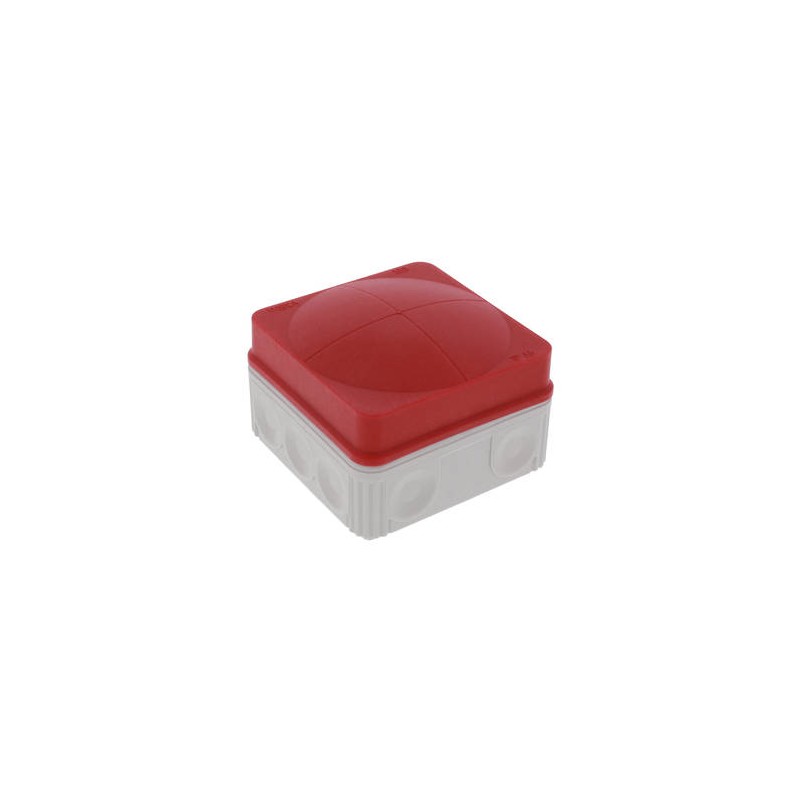

COMBI 108/empty/DR 10060632 WISKA Conex box. With membrane, light grey RAL 7035, IP66 pressure cap RAL 3000 ..
COMBI 108/empty/DR
10060632
WISKA
10
Conex box. With membrane, light grey RAL 7035, IP66 pressure cap RAL 3000 76x76x51, range from 3, to 14mm.
Junction box 76x76x51mm, polypropylene, RAL 7035, cover RAL 3000
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 2,5 mm² |
| Fixing | 2 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 14 mm |
| External dimensions LxWxH | 76 x 76 x 51mm |
| Using for cable gland |  |
| Product Color | RAL 7035 / RAL 3000 |
| WISKA-Order no. | 10060632 |
| Type | COMBI 108 LG RD |
| Packing unit | 10 |
| ETIM-Classification | EC002600 |
| Remarks: Equipment: - 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom - Color casing: RAL 7035 (grey) - Color lid: RAL 3000 (red) Fixing: By two internal openings outside of the sealing area | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| COMBI 108/empty/DR 10060632 EN_10060632.pdf | 379 Kbytes |
|
