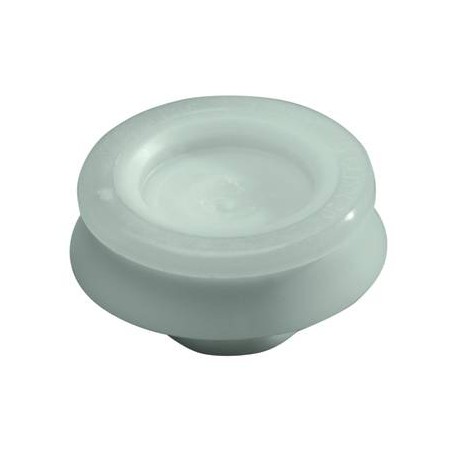

CLIXX 25/GL 10101862 WISKA Wall-wall anti-traction membrane, light grey RAL 7035, range from 9.0mm to 17.0mm..
CLIXX 25/GL
10101862
WISKA
50
Wall-wall anti-traction membrane, light grey RAL 7035, range from 9.0mm to 17.0mm, DN25

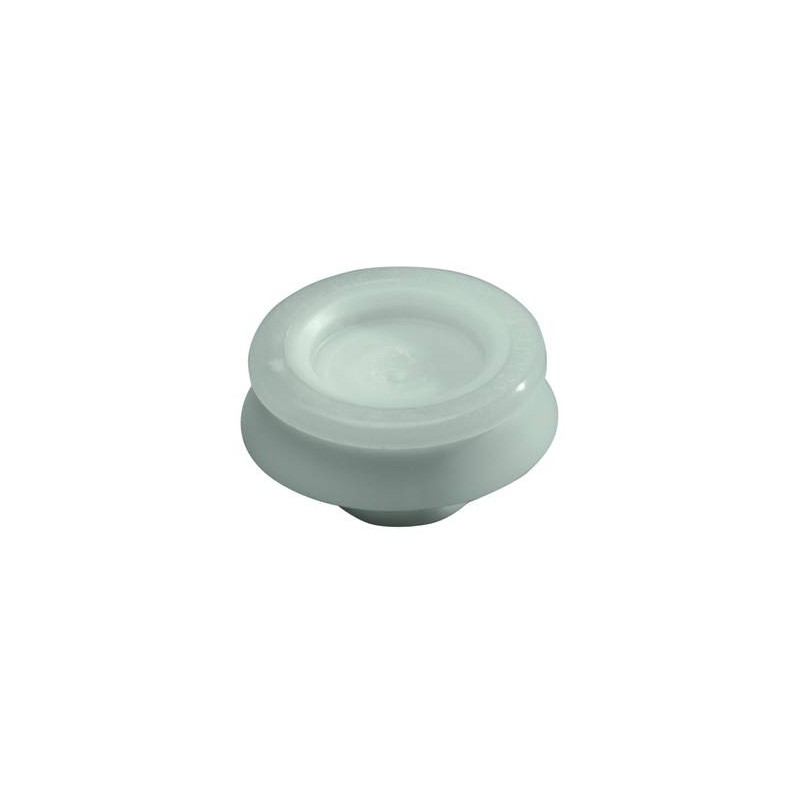

Membrane cable entrie with strain relief, plastic, RAL 7035, M25
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material membrane | TPE |
| Temp. range min | -40 °C |
| Temp. range max | 65 °C |
| Glow wire test | 750 °C |
| Protection class | IP66 / IP67 |
| Ø Connection thread D | 25 |
| Length screw-in thread L | 7,5 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Collar diameter (E) | 32 mm - 38 mm |
| Total length TL | 15 mm |
| Ø Drilling | 25,5 mm - 25,7 mm |
| Wall thickness S | 0,8 mm - 3,5 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10101862 |
| Type | CLIXX® 25 |
| Packing unit | 50 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| CLIXX 25/GL 10101862 EN_10101862.pdf | 195 Kbytes |
|
