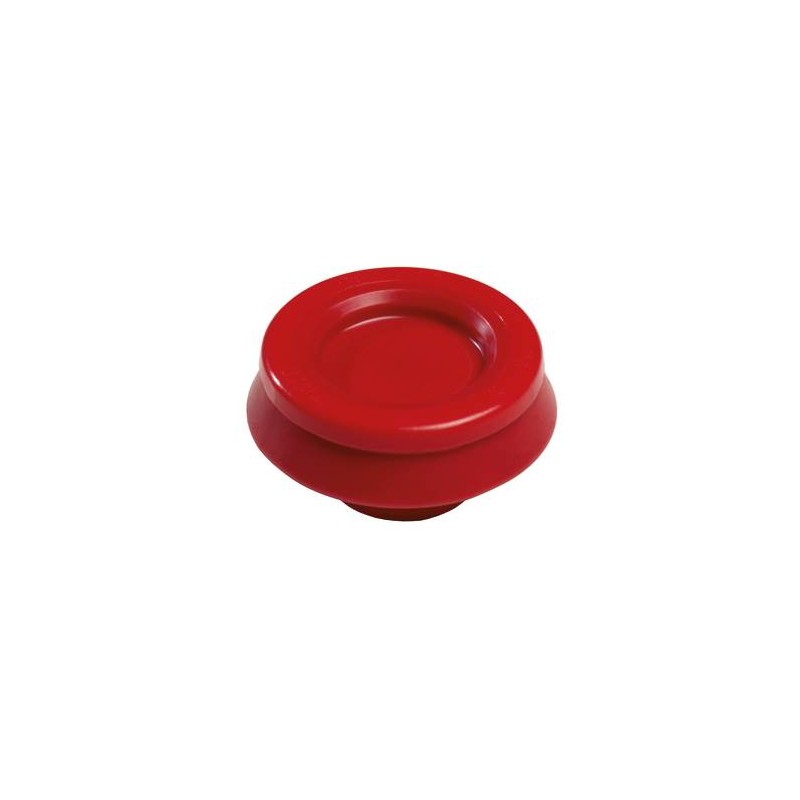

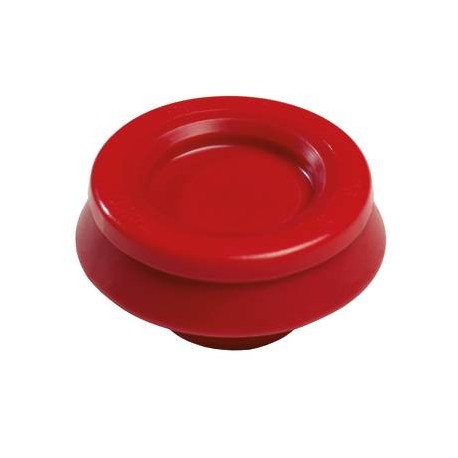

CLIXX 16/R 10101931 WISKA Wall-wall anti-traction membrane, red RAL 3000, range from 4.0mm to 10.0mm, DN16
CLIXX 16/R
10101931
WISKA
50
Wall-wall anti-traction membrane, red RAL 3000, range from 4.0mm to 10.0mm, DN16
Membrane cable entrie with strain relief, plastic, RAL 3000, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material membrane | TPE |
| Temp. range min | -40 °C |
| Temp. range max | 65 °C |
| Glow wire test | 750 °C |
| Protection class | IP66 / IP67 |
| Ø Connection thread D | 16 |
| Length screw-in thread L | 7,3 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Collar diameter (E) | 23 mm - 28 mm |
| Total length TL | 15 mm |
| Ø Drilling | 16,5 mm - 16,7 mm |
| Wall thickness S | 0,8 mm - 3,5 mm |
| Product Color | RAL 3000 |
| Order no. RAL 3000 | 10101931 |
| Type | CLIXX® 16 |
| Packing unit | 50 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| CLIXX 16/R 10101931 EN_10101931.pdf | 198 Kbytes |
|
