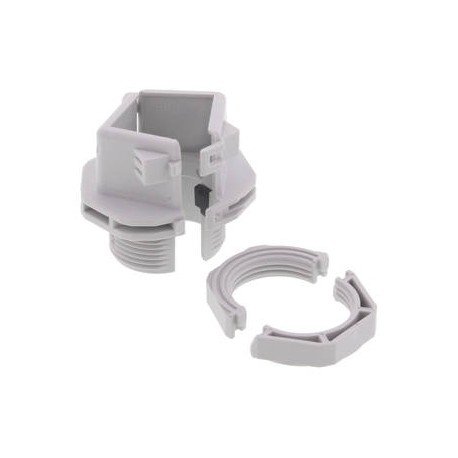

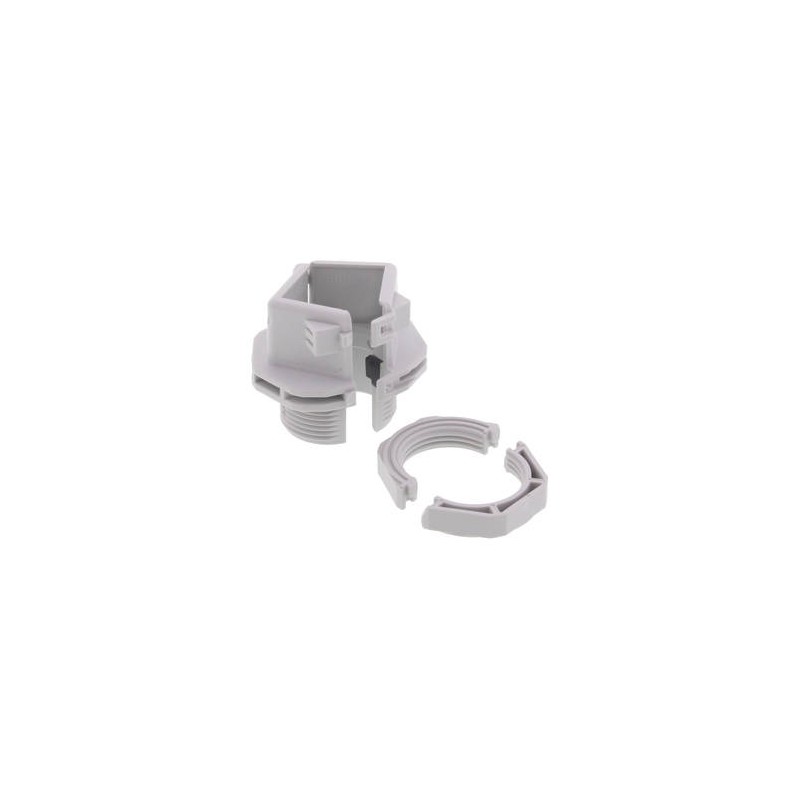

CKM 32 V0 LG 10108665 WISKA CONMAXX Gland open M32, polyamide UL94-V0, -40oC 100oC, RAL 7035
CKM 32 V0 LG
10108665
WISKA
CONMAXX Gland open M32, polyamide UL94-V0, -40oC - 100oC, RAL 7035
CONMAXX divided gland with locknut, polyamide, RAL 7035, M32
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Often bought together
▲Best sellers
▲More info
▲Features
| Material cable gland | polyamide UL94-V0 |
| Material sealing gasket | TPE UL94-V0 |
| Protection class | IP66 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Key width SW | 38 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 39 mm |
| Product Color | RAL 7035 |
| Type | CKM 32 V0 LG |
| Order no. RAL 7035 | 10108665 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
| Remarks: - inclusive divided locknut - suitable sealing inserts: CDKG | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| CKM 32 V0 LG 10108665 EN_10108665.pdf | 200 Kbytes |
|
