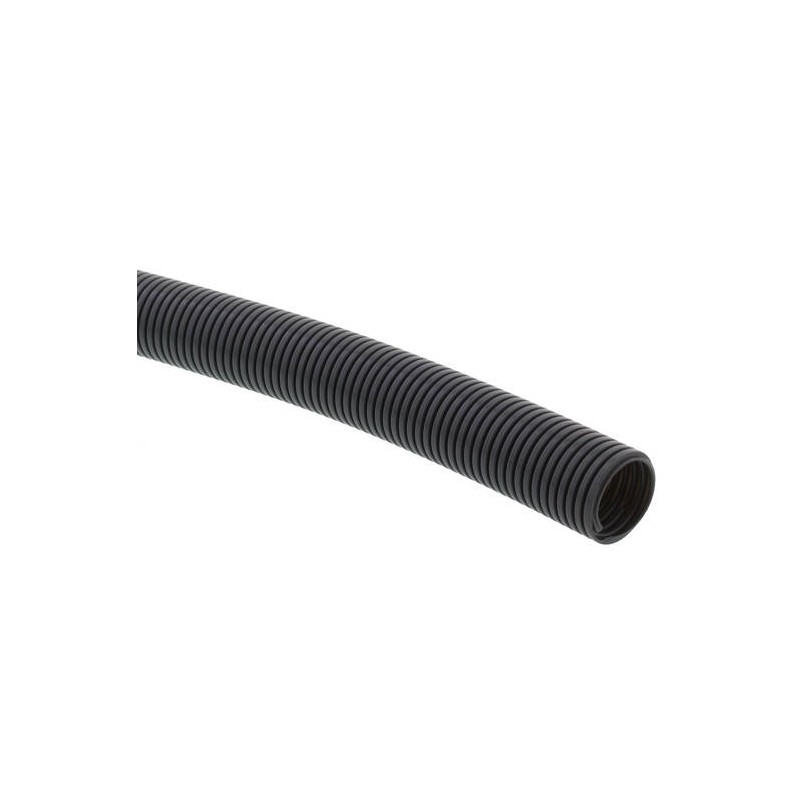

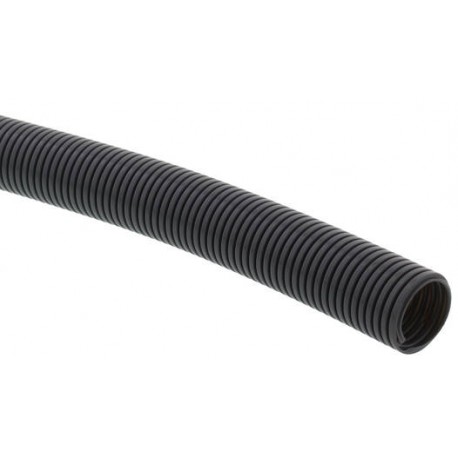

BCAV-S-10/B 10107087 WISKA Standard black PA tube DN10/13
BCAV-S-10/B
10107087
WISKA
50
Standard black PA tube DN10/13
Conduit PA6 UL94-V2, RAL 9005, NW10
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | PA6 UL94-V2 |
| Temp. range min | -40 °C |
| Temp. range max | 125 °C |
| Operational areas | Mechanical plant engineering |
| Product Color | RAL 9005 |
| NW | 10 |
| External diameter ED | 13 mm |
| Ø inside | 9,9 mm |
| Profile width A | 2,7 mm |
| Width B | 1,8 mm |
| Bending radius R | 26 mm |
| Wall thickness S | 0,2 mm |
| Model | Standard profile |
| Type | BCAV-S-10-BK |
| Order no. RAL 9005 | 10107087 |
| Packing unit | 50 m |
| ETIM-Classification | EC001175 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| BCAV-S-10/B 10107087 EN_10107087.pdf | 247 Kbytes |
|
