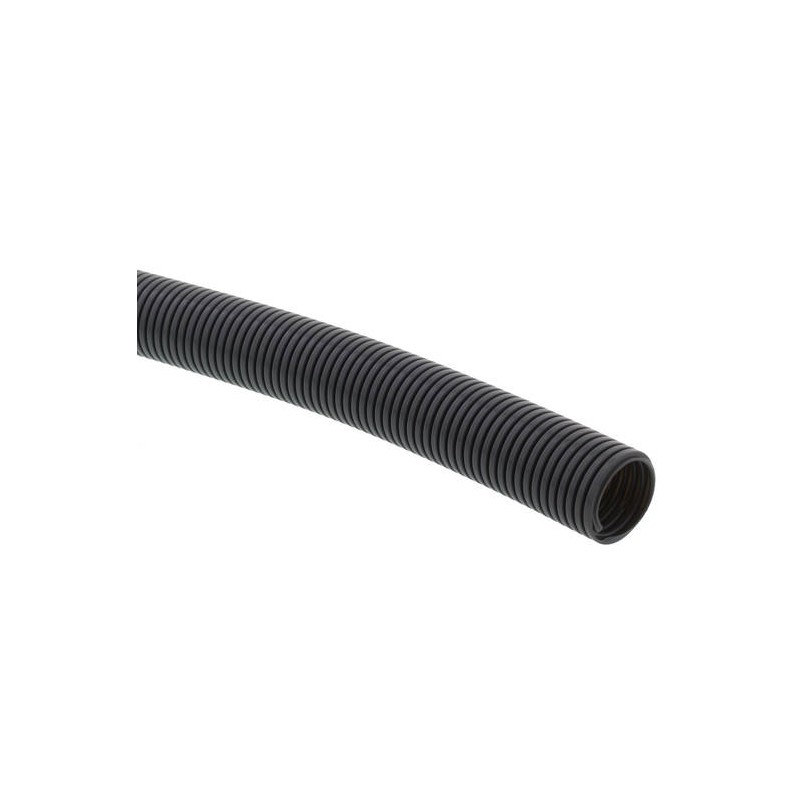

BCA-S-36/B 10107078 WISKA Black PA tube "V0", DN36/42
BCA-S-36/B
10107078
WISKA
25
Black PA tube "V0", DN36/42
Conduit PA6 UL94-V0, RAL 9005, NW36
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | PA6 UL94-V0 |
| Temp. range min | -40 °C |
| Temp. range max | 140 °C |
| UL-Temp. range max | 105 °C |
| Operational areas | EN 45545 - Railway |
| Product Color | RAL 9005 |
| NW | 36 |
| External diameter ED | 42,2 mm |
| Ø inside | 36 mm |
| Profile width A | 4,2 mm |
| Width B | 2,8 mm |
| Bending radius R | 91 mm |
| Wall thickness S | 0,4 mm |
| Model | Standard profile |
| UL 1696 | Yes |
| Type | BCA-S-36-BK |
| Order no. RAL 9005 | 10107078 |
| Packing unit | 25 m |
| ETIM-Classification | EC001177 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| BCA-S-36/B 10107078 EN_10107078.pdf | 266 Kbytes |
|
