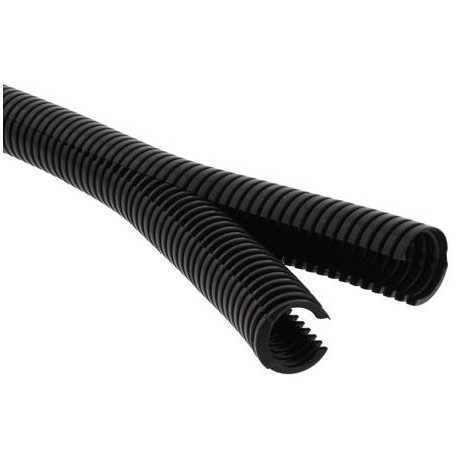

BCA-D-12/G 10107128 WISKA Double open tube PA, V0, standard grey weight, DN12/16
BCA-D-12/G
10107128
WISKA
50
Double open tube PA, V0, standard grey weight, DN12/16

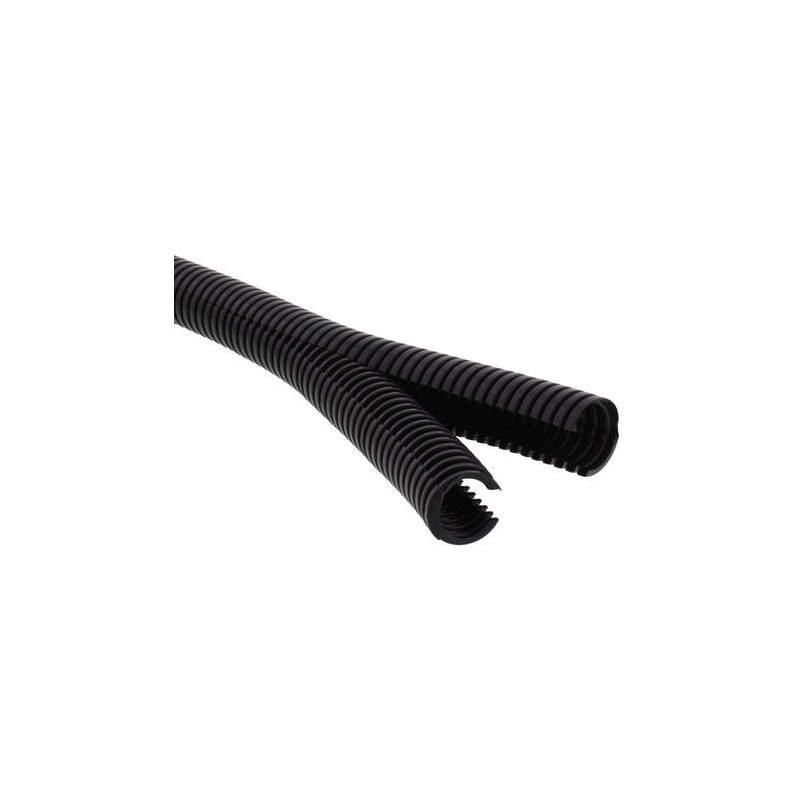

Conduit devided PA6 UL94-V0, RAL 7031, NW12
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | PA6 UL94-V0 |
| Temp. range min | -40 °C |
| Temp. range max | 140 °C |
| Operational areas | EN 45545 - Railway |
| Product Color | RAL 7031 |
| NW | 12 |
| External diameter ED | 15,8 mm |
| Ø inside | 10,7 mm |
| Profile width A | 3,1 mm |
| Width B | 2 mm |
| Bending radius R | 75 mm |
| Wall thickness S | 0,6 mm |
| Closable (two-part) | yes |
| Type | BCA-12-D-BG |
| Order no. RAL 7031 | 10107128 |
| Packing unit | 50 m |
| ETIM-Classification | EC001177 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| BCA-D-12/G 10107128 EN_10107128.pdf | 256 Kbytes |
|
