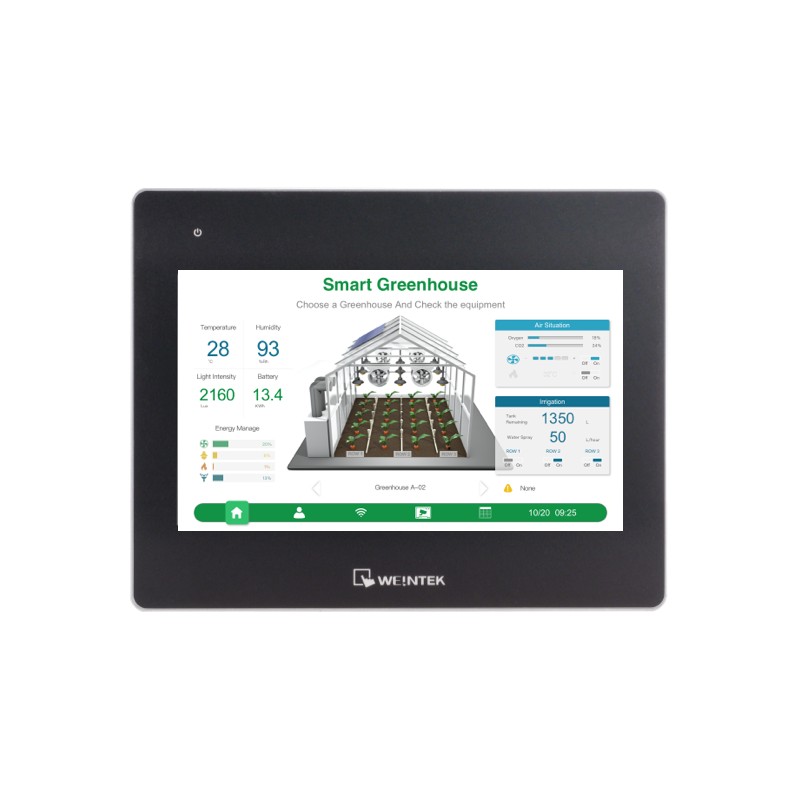

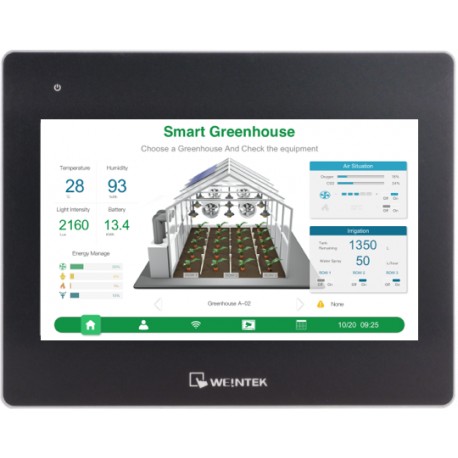

CMT3102X (R) WEINTEC Feature: 10.1" 1024 x 600 wide viewing angle LCD, built-in RFID, built-in 4GB flash mem..
CMT3102X (R)
WEINTEK
Feature: 10.1" 1024 x 600 wide viewing angle LCD, built-in RFID, built-in 4GB flash memory and RTC, COM2 and COM3 RS-485 support MPI 187.5K (please use one at a time), CAN bus supports CANopen, CAN Bus 2.0A/2.0B and SAE J1939, PCB coating process ensures high reliability to resist corrosion in harsh environments, built-in power isolation, NEMA4 / IP66 compliant front panel, and compatible with M02 WiFi expansion module that supports wireless communication.
Home > WEINTEK
Brand new product in its original packaging covered by the warranties and certifications provided by WEINTEK
Best sellers
▲More info
▲| Category | Item | Specification |
|---|---|---|
| Display | Display | 10.1" Wide Viewing Angle (WVA) |
| Resolution | 1024 x 600 | |
| Brightness (cd/m²) | 350 | |
| Contrast Ratio | 1000:1 | |
| Backlight Type | LED | |
| Backlight Life Time | >50,000 hrs. | |
| Colors | 16.7M | |
| LCD Viewing Angle (T/B/L/R) | 89/89/89/89 | |
| Pixel Pitch (mm) | 0.2175 (H) x 0.2088 (V) | |
| Touch Panel | Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash | 4 GB |
| RAM | 1 GB | |
| Processor | CPU | Quad-core RISC |
| I/O Port | SD Card Slot | N/A |
| USB Host | USB 2.0 x 1 | |
| USB Client | N/A | |
| Ethernet | LAN 1: 10/100/1000 Base-T x 1, LAN 2: 10/100 Base-T x 1 | |
| WiFi | M02 WiFi Expansion Module (Optional) | |
| COM Port | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus Con.B: COM1 RS-232 4W, COM3 RS-232 2W*1 | |
| CAN Bus | Yes | |
| Audio Output | N/A | |
| RFID | Compatibility Standard | ISO/IEC 14443 Type A/B, Frequency: 13.56 MHz |
| Reading Distance | Max. 4 cm*2 | |
| RTC | RTC | Built-in* |
| Power | Input Power | 24±20%VDC |
| Power Isolation | Built-in | |
| Power Consumption | 1A@24VDC | |
| Voltage Resistance | 500VAC (1 min.) | |
| Isolation Resistance | Exceed 50MΩ at 500VDC | |
| PCB Coating | Yes | |
| Specification | Enclosure | Plastic |
| Dimensions WxHxD | 271 x 213 x 38 mm | |
| Panel Cutout | 260 x 202 mm | |
| Weight | Approx. 1.2 kg | |
| Mount | Panel mount, VESA mount 75 x 75 mm | |
| Environment | Protection Structure | UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) | |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) | |
| Relative Humidity | 10% ~ 90% (non-condensing) | |
| Altitude | 3,000 m | |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | |
| Certificate | CE | CE marked |
| ATEX | ATEX Zone 2/22 Category 3 G/D | |
| UL | cULus Listed | |
| Software | EasyBuilder Pro | V6.09.02 or later versions |
| Weincloud | EasyAccess 2.0 (Optional), Dashboard (Optional) | |
| CODESYS* | Optional*3 |
