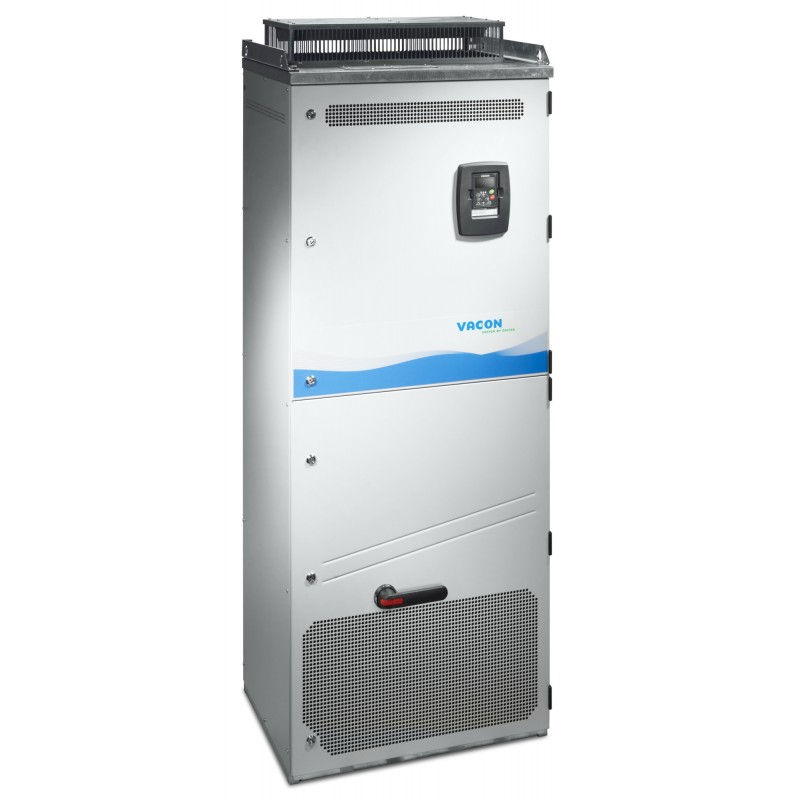

132H0009 7DP-059052-000012745 VACON NXP05905-G2L1SSB-A1A2D7B500 +FL26+ARFIFF03 +DPAP+DLRU Vacon NXP Frequenc..
132H0009
7DP-059052-000012745
VACON
NXP05905-G2L1SSB-A1A2D7B500 +FL26+ARFIFF03 +DPAP+DLRU Vacon NXP Frequency Converter380 – 500 Vac (465-800 Vdc), 590 Amp, IP21/NEMA1Graphical panelIEC61800-3, 2. enviromentIntegrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: 3RO(NO)E Slot: No boardManual: RussianFrame 11Other options according to Model code
VACON NXP Air Cooled
Brand new product in its original packaging covered by the warranties and certifications provided by VACON
Related products
▲Best sellers
▲More info
▲NXP05905-G2L1SSB-A1A2D7B500 +FL26+ARFIFF03 +DPAP+DLRU
Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 590 Amp, IP21/NEMA1
Graphical panel
IEC61800-3, 2. enviroment
Integrated Brake chopper
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: 2RO(NO/NC)
C Slot: Line voltage meas.
D Slot: 3RO(NO)
E Slot: No board
Manual: Russian
Frame 11
Other options according to Model code
Product details
| Gross weight | 471 Kilogram | ||
| Net weight | 470 Kilogram | ||
| EAN | 5714853285570 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 0590 | 590 Amp | |
| Control Keypad | G | Graphical panel | |
| Enclosure | 2 | IP21/NEMA1 | |
| EMC emission levels | L | IEC61800-3, 2. enviroment | |
| Brake Chopper | 1 | Integrated Brake chopper | |
| Electrical Modification | S | 6-pulse with choke | |
| Card Modifications | B- | Fiber+IntegrControl+varn.PCB | |
| Shipping Package | +GSWP | Wooden packaging | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | A2 | 2RO(NO/NC) | |
| Option Slot C | D7 | Line voltage meas. | |
| Option Slot D | B5 | 3RO(NO) | |
| Option Slot E | 00 | No board | |
| Firmware language package | +FL26 | UK,RU,CN;Others | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLRU | Russian | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +ARFIFF03 | Grid Converter NXA,NXI,NXP | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR11 | Frame 11 | |
| Power rating | 315 | 315 kW/450 HP | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-059052 | ||
| Typecode Part 2 | -000012745 | ||
| Salestext | FR1105905-2L | FR1105905-2L | |
| Modelcode01 | NXP05905-G2L1SSB- | ||
| Modelcode02 | A1A2D7B500 | ||
| Modelcode03 | +FL26 | ||
| Modelcode04 | +ARFIFF03 | ||
| Modelcode05 | +DPAP+DLRU | ||
| Calculated Net Weight [kg] | 470 | ||
| Calculated Gross Weight [kg] | 471 | ||
| Motor Power Low Overload [kW] | 315 | 315 | |
| Motor Power High Overload [kW] | 250 | 250 | |
| Dimensions WxHxD [mm] | 794X2018X602 | 794X2018X602 | |
| Continuous Current (NO) [A] | 590 | 590 | |
| Continuous Current (HO) [A] | 520 | 520 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stockcode part 1 | 7DP-059052-118LCC | ||
| Stock Code | 7DP-059052 | 7DP-059052 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1A2D7B500 | ||
| Calculated Net Weight | 470 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Salescode part 3 | +FL26 | +FL26 |
