View larger

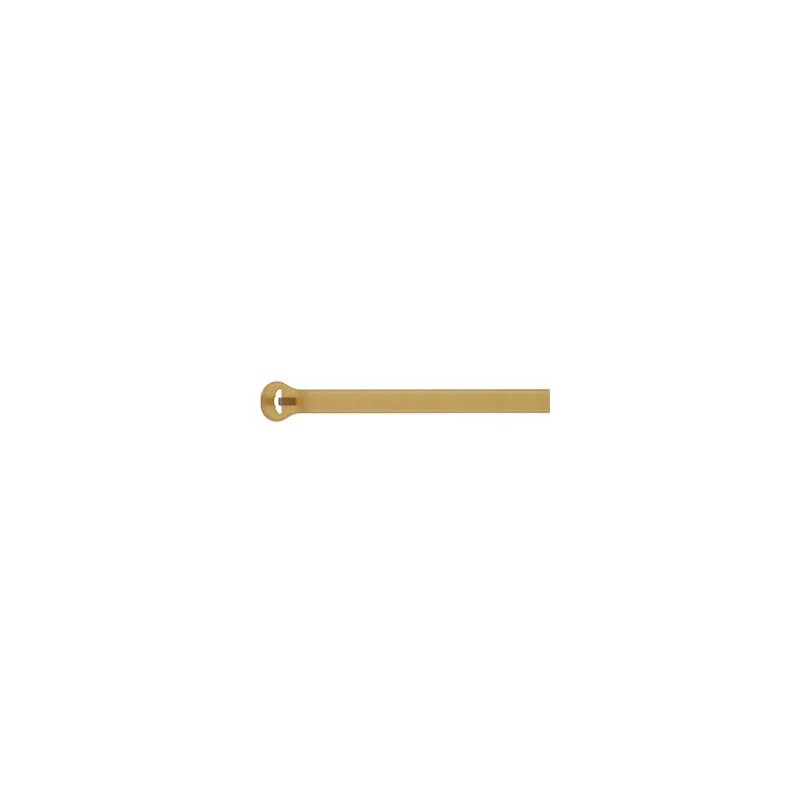

7TAG009590R0013 THOMAS AND BETTS HIGH TEMP TY24M, NATURAL PA4.6
TYHT24M
7TAG009590R0013
THOMAS AND BETTS
1000
HIGH TEMP TY24M, NATURAL PA4.6
BRIDA TYRAP 143x3,6 VERY HIGH TEMP
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TYHT24M
- Product ID:
- 7TAG009590R0013
- EAN:
- 5415022047769
- Catalog Description:
- HIGH TEMP TY24M, NATURAL PA4.6
- Long Description:
- Extra High Temperature Cable Tie, Olive Polyamide (Nylon 4.6) for Temperatures up to 150 Degrees Celsius (302 F) for High Temperature Environments, Length of 137mm (5.38 Inches), Width of 3.6mm (0.14 Inch), Thickness of 1mm (0.04 Inch), Tensile Strength Rating of 178 Newtons (40 Pounds)
Ordering
- EAN:
- 5415022047769
- UPC:
- 786209982551
- Country of Origin:
- United States (US)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Width:
- 0.14in
3.55 mm
- Product Net Depth / Length:
- 5.38in
137 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 1 Width:
- 1 in
25 mm
- Package Level 1 Height:
- 12 in
305 mm
- Package Level 1 Depth / Length:
- 12 in
305 mm
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 10.25 in
260 mm
- Package Level 2 Height:
- 12.75 in
324 mm
- Package Level 2 Depth / Length:
- 10.5 in
267 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- 0.062 to 1.14 in
1.57 to 29 mm
- Color:
- Olive
- Effective Date:
- 20110331
- Lock Type:
- Stainless Steel Barb
- Material:
- Nylon/Polyamide 4.6
- Product Name:
- PLASTIC CABLE TIE
- Product Type:
- Extra High Temperature
- Standards:
- UL E49405
- Tensile Strength:
- 40 lb
178 N
- Thickness:
- 0.04 in
1 mm
Certificates and Declarations
- Data Sheet, Technical Information:
- TDS000494
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TYHT24M 7TAG009590R0013 EN_7TAG009590R0013.pdf | 87 Kbytes |
|
