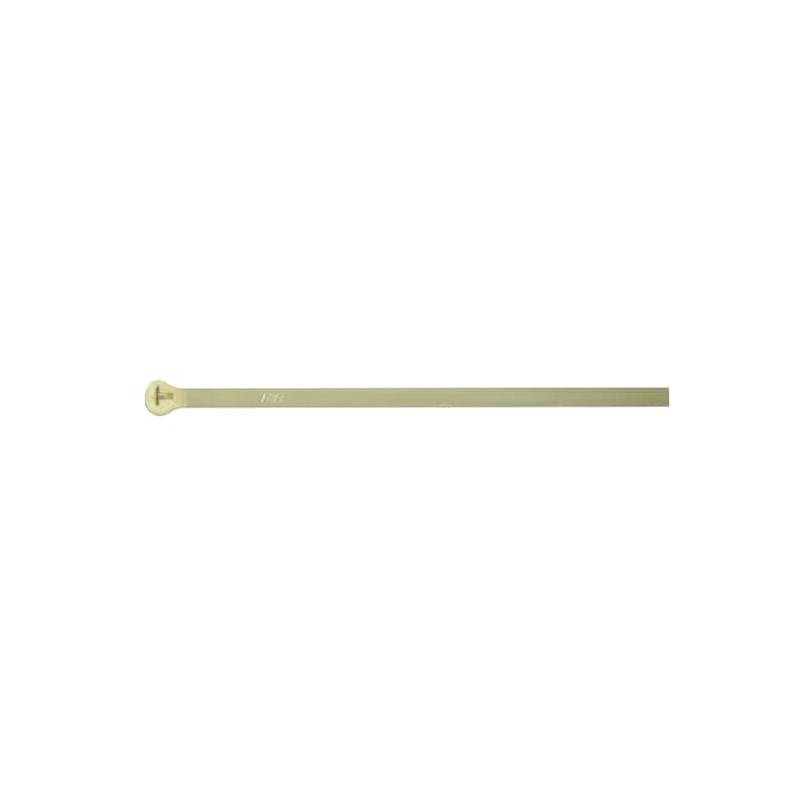

7TCG009590R0007 THOMAS AND BETTS CABLE TIE 30LB 11IN GR NYL HEAT STB
TYH26M
7TCG009590R0007
THOMAS AND BETTS
1000
CABLE TIE 30LB 11IN GR NYL HEAT STB
BRIDA TYRAP 284x3.6 NATURAL STABILIZED
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TYH26M
- Product ID:
- 7TCG009590R0007
- EAN:
- 5414363067436
- Catalog Description:
- CABLE TIE 30LB 11IN GR NYL HEAT STB
- Long Description:
- Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 277mm (10.9 Inches), Width of 3.6mm (0.14 Inch), Thickness of 1.3mm (0.05 Inch), Maximum Bundle Diameter 76mm (2.99 Inches), Tensile Strength Rating of 120 Newtons (27 Pounds)
Ordering
- EAN:
- 5414363067436
- UPC:
- 786210514673
- Country of Origin:
- Hungary (HU)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Depth / Length:
- 11.1in
282 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 10.2 in
259 mm
- Package Level 2 Height:
- 13.8 in
351 mm
- Package Level 2 Depth / Length:
- 19.7 in
500 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- Max 4.02 in
Max 102 mm
- Color:
- Green Tint
- Effective Date:
- 19980621
- Lock Type:
- Stainless Steel Barb
- Product Name:
- TY-RAP FASTENING
- Product Type:
- Heat-Stabilized
- RoHS Date:
- 9AKK108466A3874
- Standards:
- UL E49405
- Tensile Strength:
- 27 lb
120 N
- Thickness:
- 0.05 in
1.3 mm
Certificates and Declarations
- Data Sheet, Technical Information:
- TDS000494
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TYH26M 7TCG009590R0007 EN_7TCG009590R0007.pdf | 73 Kbytes |
|
