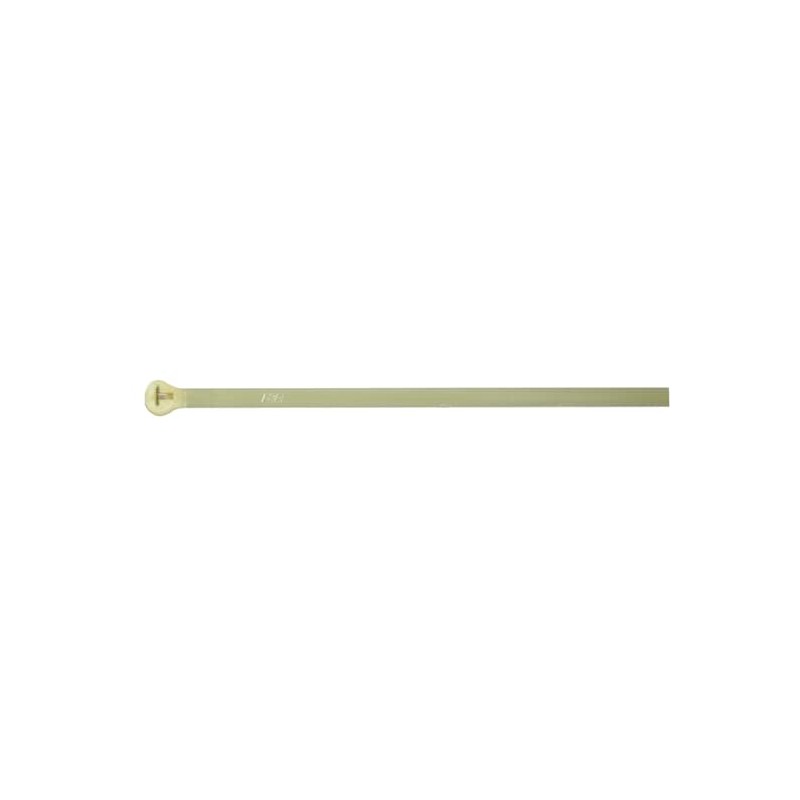

7TCG009590R0001 THOMAS AND BETTS CABLE TIE 18LB 8IN GR NYL HEAT STBL
TYH232M
7TCG009590R0001
THOMAS AND BETTS
1000
CABLE TIE 18LB 8IN GR NYL HEAT STBL
NATURAL STABILIZED TYRAP 203x2.4 BRIDA
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TYH232M
- Product ID:
- 7TCG009590R0001
- EAN:
- 5414363067368
- Catalog Description:
- CABLE TIE 18LB 8IN GR NYL HEAT STBL
- Long Description:
- Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint, for Temperatures up to 105 Degrees Celsius (220 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 204mm (8.04 Inches), Width of 2.3mm (0.09 Inch), Thickness of 1.0mm (0.04 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds)
Ordering
- EAN:
- 5414363067368
- UPC:
- 786210393018
- Country of Origin:
- Hungary (HU)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Width:
- 0.095in
2.4 mm
- Product Net Depth / Length:
- 8.04in
204 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 11.4 in
290 mm
- Package Level 2 Height:
- 9.1 in
231 mm
- Package Level 2 Depth / Length:
- 15 in
381 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- 0.06 to 2.01 in
1.5 to 51 mm
- Color:
- Green Tint
- Effective Date:
- 19980621
- Lock Type:
- Stainless Steel Barb
- Material:
- Nylon/Polyamide 6.6
- Product Name:
- PLASTIC CABLE TIE
- Product Type:
- Heat-Stabilized
- RoHS Date:
- 9AKK108466A3874
- Standards:
- UL E49405
- Tensile Strength:
- 18 lb
80 N
- Thickness:
- 0.04 in
1 mm
Certificates and Declarations
- Data Sheet, Technical Information:
- TDS000494
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TYH232M 7TCG009590R0001 EN_7TCG009590R0001.pdf | 88 Kbytes |
|
