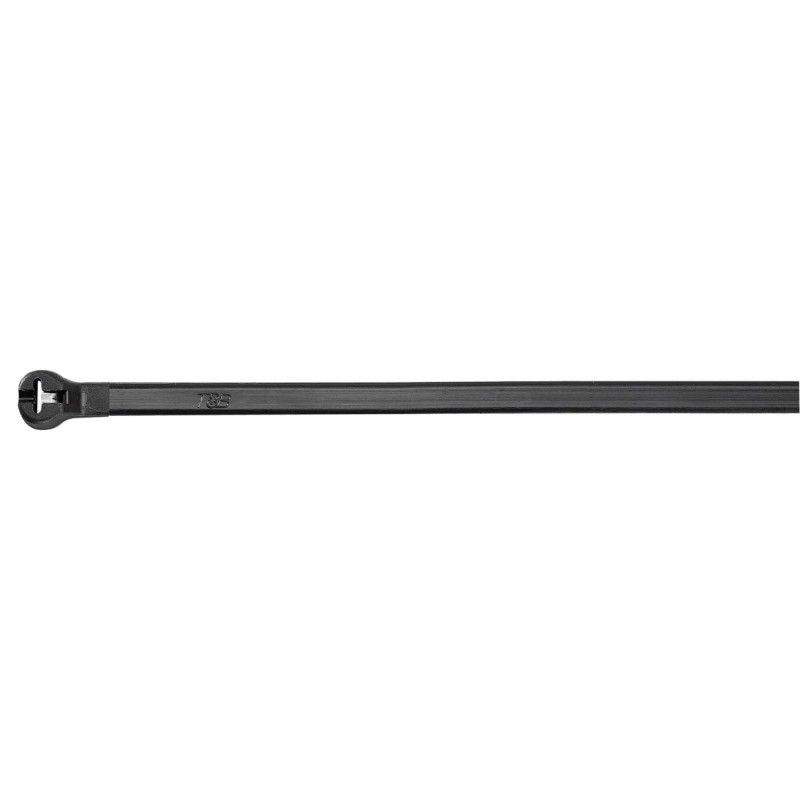

7TCG009210R0086 THOMAS AND BETTS TY28MX FOR RAILWAY
TY28MX-RW
7TCG009210R0086
THOMAS AND BETTS
1000
TY28MX FOR RAILWAY
BRIDA TYRAP 361x4,8 RAIL
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TY28MX-RW
- Product ID:
- 7TCG009210R0086
- EAN:
- 5415022180206
- Catalog Description:
- TY28MX FOR RAILWAY
- Long Description:
- Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (221 F), Weather and Ultraviolet Resistant for Exterior Applications, Length of 361mm (14.2 Inches), Width of 4.8mm (0.19 Inches), Tensile Strength Rating of 50 Newtons (222 Pounds), 1000 Bulk Pack
Ordering
- EAN:
- 5415022180206
- UPC:
- 786209717054
- Country of Origin:
- Hungary (HU)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Width:
- 0.19in
4.82 mm
- Product Net Depth / Length:
- 14.2in
361 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 1 Width:
- 13.75 in
349 mm
- Package Level 1 Height:
- 1.96 in
50 mm
- Package Level 1 Depth / Length:
- 19.65 in
499 mm
- Package Level 2 Units:
- 5000 piece
- Package Level 2 Width:
- 10.21 in
259 mm
- Package Level 2 Height:
- 14.14 in
359 mm
- Package Level 2 Depth / Length:
- 19.65 in
499 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- 0.12 to 4.02 in
3 to 102 mm
- Color:
- Black
- Effective Date:
- 20130730
- Lock Type:
- Stainless Steel Barb
- Material:
- Nylon/Polyamide 6.6
- Product Name:
- OTHER ARTICLES OF PLASTIC
- Product Type:
- High Performance
- Special Functions:
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Tensile Strength:
- 50 lb
222 N
- Thickness:
- 0.05 in
1.3 mm
Certificates and Declarations
- Data Sheet, Technical Information:
- TDS000518
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TY28MX-RW 7TCG009210R0086 EN_7TCG009210R0086.pdf | 89 Kbytes |
|
