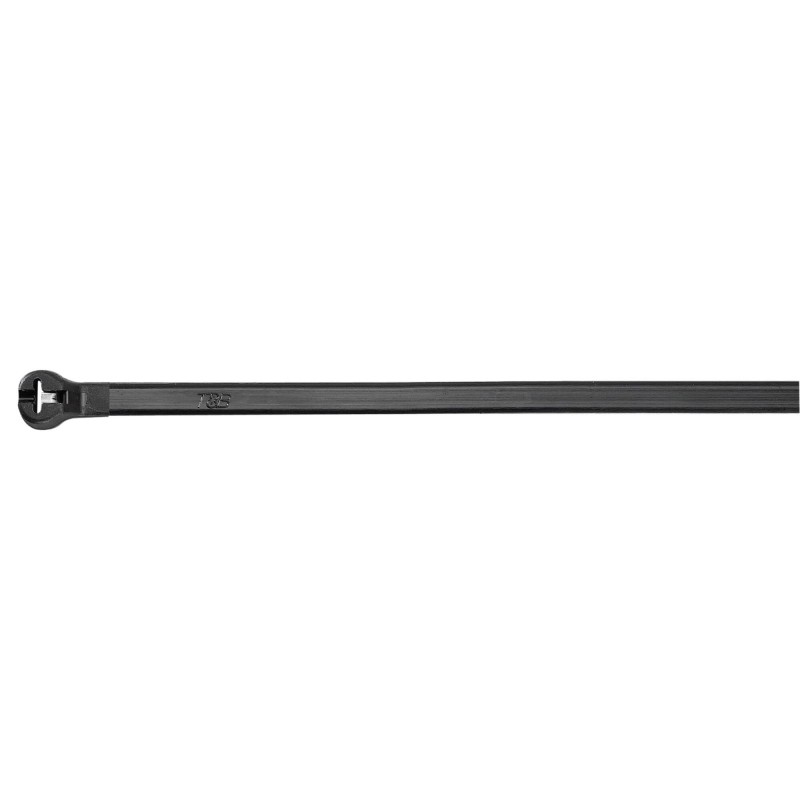

TY25MX-RW 7TCG009210R0085 THOMAS AND BETTS TY25MX FOR RAILWAY
TY25MX-RW
7TCG009210R0085
THOMAS AND BETTS
1000
TY25MX FOR RAILWAY
BRIDA TYRAP 186x4,8 RAIL
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TY25MX-RW
- Product ID:
- 7TCG009210R0085
- EAN:
- 5415022180176
- Catalog Description:
- TY25MX FOR RAILWAY
- Long Description:
- Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (221 F), Weather and Ultraviolet Resistant for Exterior Applications, Length of 185.67mm (7.31 Inches), Width of 4.9mm (0.19 Inches), Thickness of 1.09mm (0.043 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds), 500 Bulk Pack
Ordering
- EAN:
- 5415022180176
- UPC:
- 786209716705
- Country of Origin:
- Hungary (HU)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Width:
- 0.184in
4.67 mm
- Product Net Depth / Length:
- 7.2in
183 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 1 Width:
- 10.21 in
259 mm
- Package Level 1 Height:
- 1.96 in
50 mm
- Package Level 1 Depth / Length:
- 14.14 in
359 mm
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 14.7 in
373 mm
- Package Level 2 Height:
- 9.5 in
241 mm
- Package Level 2 Depth / Length:
- 21.2 in
538 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- 0.12 to 1.89 in
3 to 48 mm
- Color:
- Black
- Effective Date:
- 20130730
- Lock Type:
- Stainless Steel Barb
- Material:
- Nylon/Polyamide 6.6
- Product Name:
- OTHER ARTICLES OF PLASTIC
- Product Type:
- High Performance
- Special Functions:
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Tensile Strength:
- 50 lb
222 N
- Thickness:
- 0.04 in
1.1 mm
Certificates and Declarations
- Data Sheet, Technical Information:
- TDS000518
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TY25MX-RW 7TCG009210R0085 EN_7TCG009210R0085.pdf | 74 Kbytes |
|
