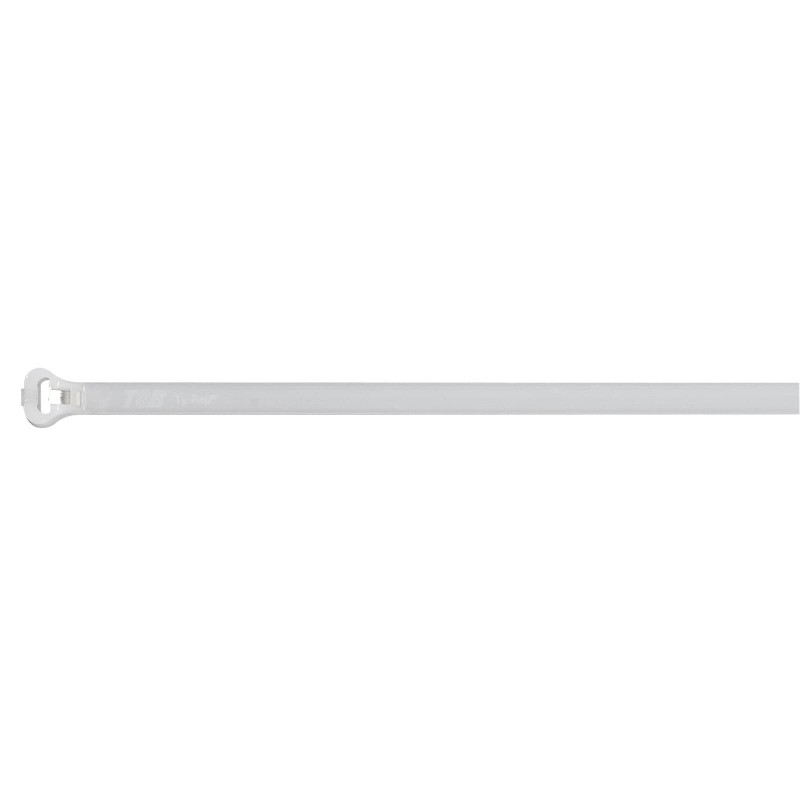

TY244M 7TCG009130R0005 THOMAS AND BETTS CABLE TIE 30LB 14.5IN NAT NYLON
TY244M
7TCG009130R0005
THOMAS AND BETTS
1000
CABLE TIE 30LB 14.5IN NAT NYLON
TYRAP BLEND 368x3.6 NATURAL
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TY244M
- Product ID:
- 7TCG009130R0005
- EAN:
- 5414363062004
- Catalog Description:
- CABLE TIE 30LB 14.5IN NAT NYLON
- Long Description:
- Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 366mm (14.4 Inches), Width of 3.6mm (0.14 Inch), Thickness of 1mm (0.04 Inch), Tensile Strength Rating of 134 Newtons (30 Pounds), Bulk Pack
Ordering
- E-Number (Finland):
- 1381532
- EAN:
- 5414363062004
- UPC:
- 786210830728
- Country of Origin:
- Hungary (HU)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Width:
- 0.14in
3.6 mm
- Product Net Depth / Length:
- 14.4in
366 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 15.9 in
404 mm
- Package Level 2 Height:
- 10.9 in
277 mm
- Package Level 2 Depth / Length:
- 23.1 in
587 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- 0.08 to 4.02 in
2 to 102 mm
- Color:
- Natural
- Effective Date:
- 19710315
- Lock Type:
- Stainless Steel Barb
- Material:
- Nylon/Polyamide 6.6
- Product Name:
- NYLON CABLE TIE
- Product Type:
- High Performance
- Special Functions:
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Standards:
- UL E49405
- Tensile Strength:
- 30 lb
134 N
- Thickness:
- 0.04 in
1.0 mm
Certificates and Declarations
- Data Sheet, Technical Information:
- TDS000566
- Declaration of Conformity - CE:
- 9AKK107492A9841
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TY244M 7TCG009130R0005 EN_7TCG009130R0005.pdf | 87 Kbytes |
|
