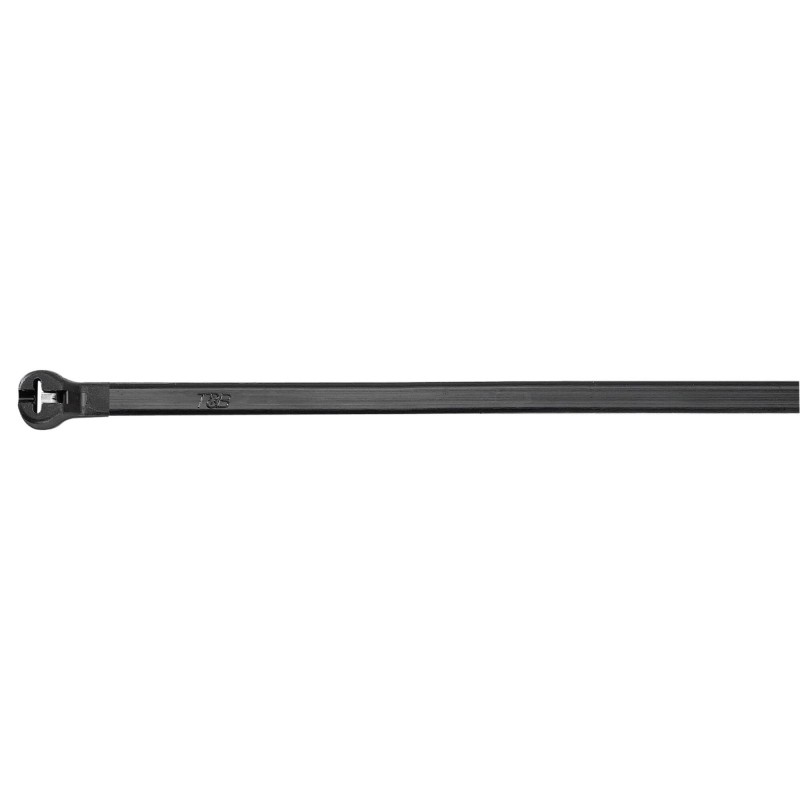

TY232MX-RW 7TCG009040R0014 THOMAS AND BETTS TY232MX FOR RAILWAY
TY232MX-RW
7TCG009040R0014
THOMAS AND BETTS
1000
TY232MX FOR RAILWAY
BRIDA TYRAP 203x2,3 RAIL
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TY232MX-RW
- Product ID:
- 7TCG009040R0014
- EAN:
- 5415022170177
- Catalog Description:
- TY232MX FOR RAILWAY
- Long Description:
- Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (221 F), Weather and Ultraviolet Resistant for Exterior Applications, Length of 203.2mm (8.0 Inches), Width of 2.54mm (0.10 Inches), Thickness of 1.10mm (0.05 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), 1000 Bulk Pack
Ordering
- EAN:
- 5415022170177
- UPC:
- 786209672001
- Country of Origin:
- Hungary (HU)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Width:
- 0.09in
2.29 mm
- Product Net Depth / Length:
- 8in
203.2 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 1 Width:
- 11 in
279 mm
- Package Level 1 Height:
- 1.17 in
30 mm
- Package Level 1 Depth / Length:
- 11.39 in
289 mm
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 10.61 in
269 mm
- Package Level 2 Height:
- 9.03 in
229 mm
- Package Level 2 Depth / Length:
- 14.14 in
359 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- 2 in
50.8 mm
- Color:
- Black
- Effective Date:
- 20130611
- Lock Type:
- Stainless Steel Barb
- Material:
- Nylon/Polyamide 6.6
- Product Name:
- OTHER ARTICLES OF PLASTIC
- Product Type:
- Railway
- Special Functions:
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Standards:
- UL E49405
- Tensile Strength:
- 18 lb
80 N
Certificates and Declarations
- Data Sheet, Technical Information:
- TY232MX-RW
- Declaration of Conformity - CE:
- 9AKK107492A9841
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TY232MX-RW 7TCG009040R0014 EN_7TCG009040R0014.pdf | 74 Kbytes |
|
