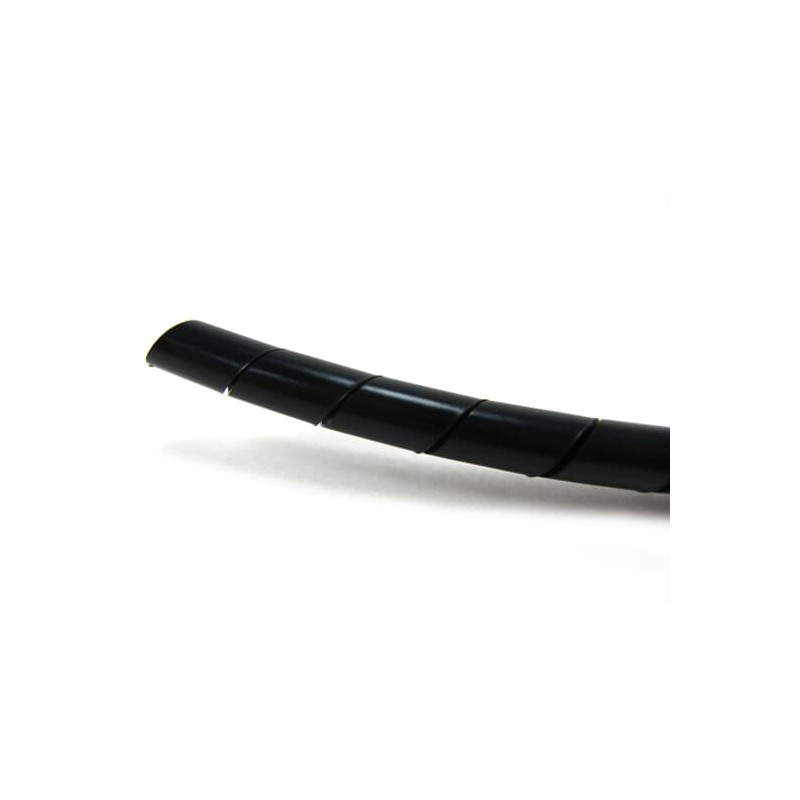

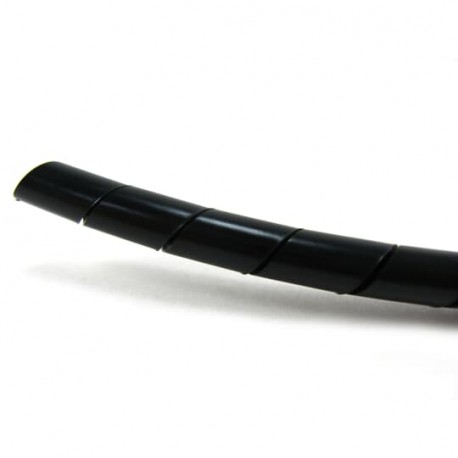

SRPE-19-0 7TCG054090R0224 THOMAS AND BETTS D19 UV SPIRAL COVER ROLL 10M
SRPE-19-0
7TCG054090R0224
THOMAS AND BETTS
D19 UV SPIRAL COVER ROLL 10M
SPIRAL WRAP UV BLK POLYETHYL 19MMOD
Protective hose systems > Cable bundle hose
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- SRPE-19-0
- Product ID:
- 7TCG054090R0224
- EAN:
- 5414363174707
- Catalog Description:
- SPIRAL WRAP UV BLK POLYETHYL 19MMOD
- Long Description:
- Spiral Wrap, Black Polyethylene for Temperatures up to 100 Degrees Celsius (212 F), Weather and Ultraviolet Resistant, Outer Diameter of 19mm (0.748 Inch), Pitch of 18.2mm (0.716 Inch), Nominal Thickness of 1.3mm (0.051 Inch), Minimum Bundle Diameter of 15mm (0.591 Inch), Maximum Bundle Diameter of 100mm (3.94 Inches), Length of 10m (32.81 Feet)
Ordering
- EAN:
- 5414363174707
Dimensions
- Product Net Weight:
- 1.1lb
498.866 g
Container Information
- Package Level 1 Units:
- 1 reel
- Package Level 1 Width:
- 13.78 in
350 mm
- Package Level 1 Height:
- 0.24 in
6 mm
- Package Level 1 Depth / Length:
- 13.78 in
350 mm
- Package Level 2 Units:
- 16 reel
- Package Level 2 Width:
- 16.73 in
425 mm
- Package Level 2 Height:
- 13.58 in
345 mm
- Package Level 2 Depth / Length:
- 16.73 in
425 mm
Additional Information
- Application:
- For Temperatures up to 100 Degrees Celsius (212 F)
- Brand / Label:
- Catamount
- Color:
- Black
- Material:
- Polyethylene
- Number of Batteries:
- 0
- Outside Diameter:
- 0.75 in
19 mm
- Pitch:
- 0.72 in ; 18.2 mm
- Product Name:
- PLASTIC CONDUIT
- Product Type:
- Spiral Wrap
- Temperature Range:
- -40 to 212 °F
-40 to 100 °C
- UPC:
- 728494141756
- Wall Thickness:
- 0.05 in
1.3 mm
Certificates and Declarations (Document Number)
Classifications
- ETIM 6:
- EC002604 - Cable bundle hose
- ETIM 7:
- EC002604 - Cable bundle hose
- UNSPSC:
- 39131604
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5395 >> Spiral wrapping
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| SRPE-19-0 7TCG054090R0224 EN_7TCG054090R0224.pdf | 76 Kbytes |
|
