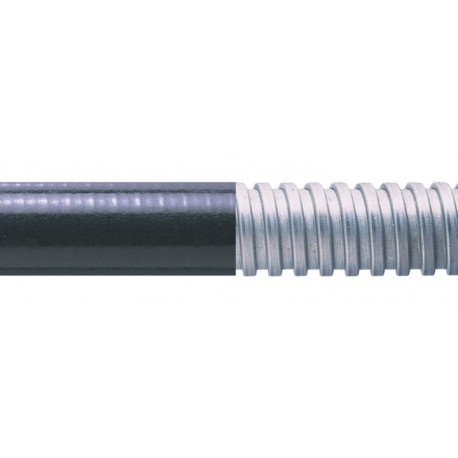

SPL25/GR/10M 7TCA296030R0201 THOMAS AND BETTS GALV TUBE. REC. PVC TYPE SPL, DN25, GR
SPL25/GR/10M
7TCA296030R0201
THOMAS AND BETTS
10 m.
GALV TUBE. REC. PVC TYPE SPL, DN25, GR
25MM GS-PVC COAT CONDUIT 10M - GR
Protective hose systems > Protective metallic hose
Adaptaflex cable protection and cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- SPL25/GR/10M
- Product ID:
- 7TCA296030R0201
- EAN:
- 5020963026829
- Catalog Description:
- SPL LQT FLEXIBLE 10M REELS
- Long Description:
- Liquid Tight, Oil Resistant, Medium Flexibility Conduit, Nominal Conduit Size 25mm, Outside Diameter 26.4mm, Inside Diameter 21.0mm, Static Bend Radius 110mm, Reel Length 10 Meters, PVC Covering with Galvanised Steel Core, Grey
Ordering
- EAN:
- 5020963026829
Dimensions
- Product Net Depth / Length:
- 10m
- Product Net Weight:
- 11.4lb
5.17 kg
Container Information
- Package Level 2 Units:
- 1 piece
- Package Level 2 Width:
- 1 in
25 mm
- Package Level 2 Height:
- 1 in
25 mm
- Package Level 2 Depth / Length:
- 1 in
25 mm
Additional Information
- Application:
- Liquid Tight - Indoors / Outdoors, Marine, Buildings
- Brand / Label:
- Adaptaflex
- Color:
- Gray
- Flexibility:
- Medium
- Inside Diameter:
- 21.0 mm
- Material:
- Galvanized Steel Core with PVC Covering
- Nominal Size:
- 3/4 in
NC25
- Number of Batteries:
- 0
- Outside Diameter:
- 26.4 mm
- Product Name:
- ADAPTAFLEX
- Product Type:
- Oil Resistant Conduit
- Radius:
- 110 mm
- UPC:
- 786210275109
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- SPL25/GR/10M
- Declaration of Conformity - CE:
- 9AKK107492A9618
- Instructions and Manuals:
- SPL25/GR/10M
Classifications
- ETIM 6:
- EC001179 - Protective metallic hose
- ETIM 7:
- EC001179 - Protective metallic hose
- UNSPSC:
- 39131706
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5543 >> Liquid Tight Conduit
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| SPL25/GR/10M 7TCA296030R0201 EN_7TCA296030R0201.pdf | 84 Kbytes |
|
