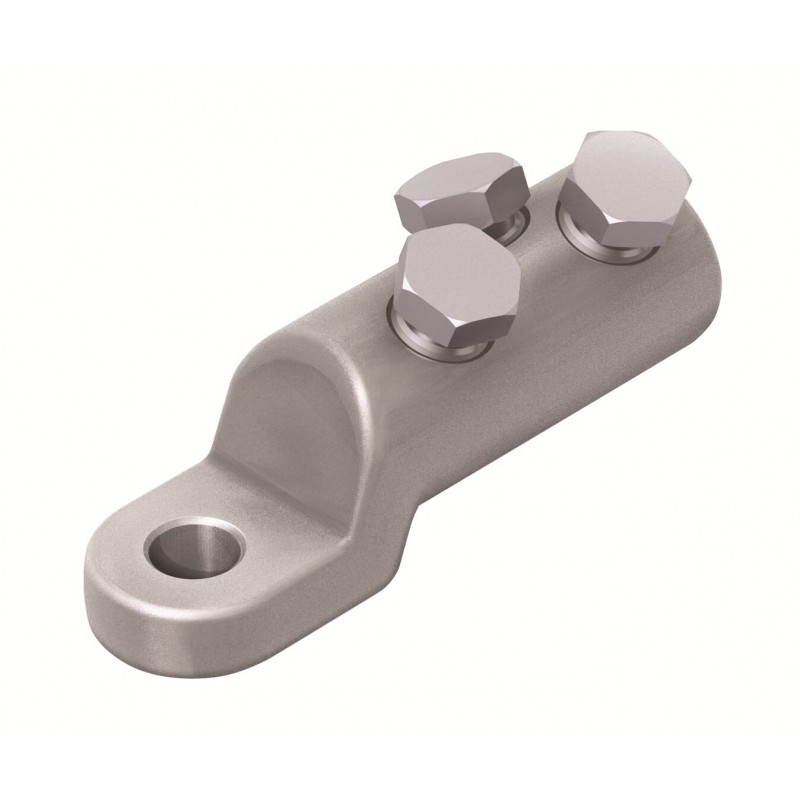

SBTAA3KN42AA 7TCA315035R0006 THOMAS AND BETTS MED BOTTLE TERMINAL. VOLTAGE 185-400MM2
SBTAA3KN42AA
7TCA315035R0006
THOMAS AND BETTS
9
MED BOTTLE TERMINAL. VOLTAGE 185-400MM2
MECH LUG/TERM/185-400MM2
Installation, isolation and connection material > Screw cable lug
Home > THOMAS AND BETTS
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 5415022541168 |
| Minimum Order Quantity | 9 piece |
| Country or Territory of Origin | China |
| Selling Unit of Measure | each |
| Dimensions | |
| Product Net Width | 2 in |
| 42 mm | |
| Product Net Height | 2 in |
| 60 mm | |
| Product Net Depth / Length | 6 in |
| 141 mm | |
| Product Net Weight | .83349 lb |
| 378 g | |
| Container Information | |
| Package Level 1 Units | 9 piece |
| Package Level 1 Width | 6.89 in |
| 175 mm | |
| Package Level 1 Height | 8.07 in |
| 205 mm | |
| Package Level 1 Depth / Length | 5.91 in |
| 150 mm | |
| Package Level 1 EAN | 5415022541168 |
| Additional Information | |
| Cable Cross-Section | Conductor 185 ... 400 mm² |
| Effective Date | 20240410 |
| Material of Conductor | Aluminum and Copper |
| Product Main Type | METALLIC COMPONENTS AND TOOLS |
| Product Name | ELECTRICAL TERMINALS & COUPLINGS |
| Surface Finishing | Tinned |
| Certificates and Declarations | |
| Data Sheet, Technical Information | TDS000843 |
| External Classifications and Standards | |
| ETIM 7 | EC001054 - Screw cable lug |
| ETIM 9 | EC001054 - Screw cable lug |
| ETIM 10 | EC001054 - Screw cable lug |
| Material Compliance | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
