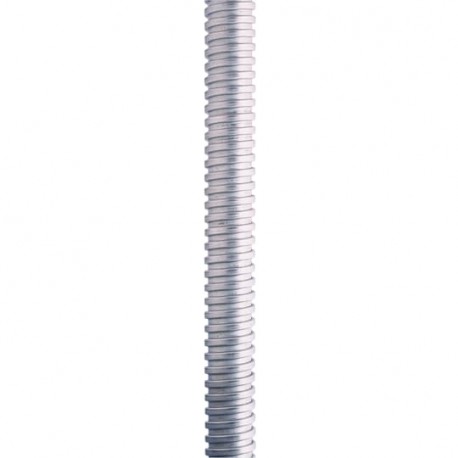

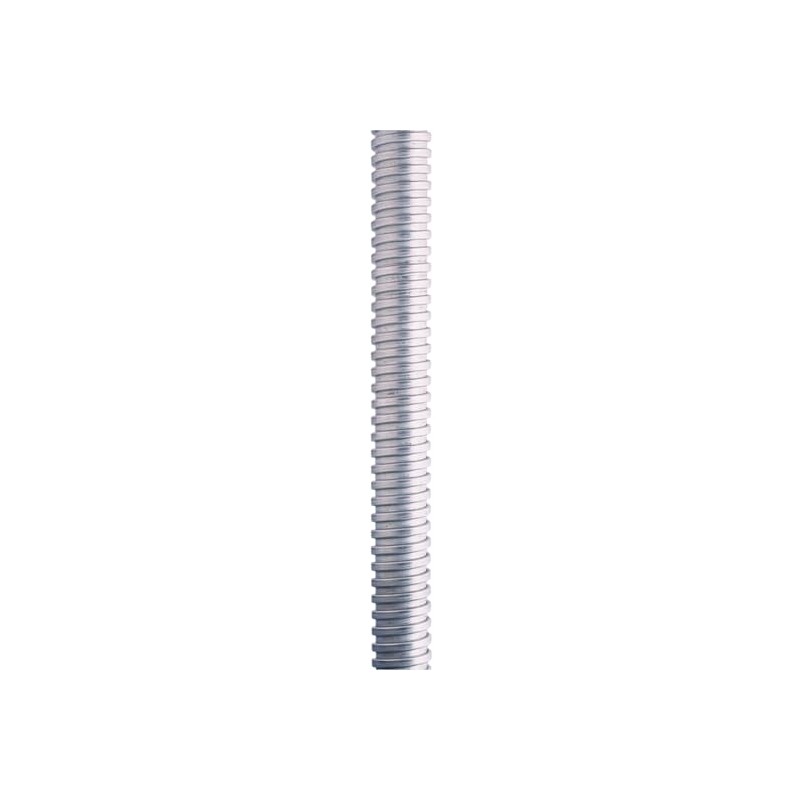

S16/25M 7TCA296010R0037 THOMAS AND BETTS 25M X S16 CONDUIT
S16/25M
7TCA296010R0037
THOMAS AND BETTS
25
25M X S16 CONDUIT
Adaptaflex cable protection and cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- S16/25M
- Product ID:
- 7TCA296010R0037
- EAN:
- 5020963003462
- Catalog Description:
- 25M X S16 CONDUIT
- Long Description:
- Inherent Low Fire Hazard Steel Conduit, Nominal Conduit Size 16mm, Outside Diameter 16.0mm, Inside Diameter 13.0mm, Static Bend Radius 35mm, Reel Length 25 Meters, Galvanised Steel General Purpose
Ordering
- EAN:
- 5020963003462
Dimensions
- Product Net Depth / Length:
- 25m
- Product Net Weight:
- 10.03lb
4.549 kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 1 in
25 mm
- Package Level 1 Height:
- 1 in
25 mm
- Package Level 1 Depth / Length:
- 1 in
25 mm
- Package Level 2 Units:
- 6 piece
- Package Level 2 Width:
- 40 in
1016 mm
- Package Level 2 Height:
- 50 in
1270 mm
- Package Level 2 Depth / Length:
- 48 in
1219 mm
Additional Information
- Application:
- Indoors / Outdoors - Light Industrial, Buildings
- Brand / Label:
- Adaptaflex
- Flexibility:
- Very High
- Inside Diameter:
- 13.0 mm
- Material:
- Galvanized Steel
- Nominal Size:
- 3/8 in
16 mm
- Number of Batteries:
- 0
- Outside Diameter:
- 16.0 mm
- Product Name:
- flexible metal conduit
- Product Type:
- Low Fire Hazard Conduit
- Radius:
- 35 mm
- Special Functions:
- Very High UV Protection and Fatigue Life
- UPC:
- 786210251370
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- S16/25M
- Declaration of Conformity - CE:
- 9AKK107492A9618
- Instructions and Manuals:
- S16/25M
Classifications
- ETIM 6:
- EC001179 - Protective metallic hose
- ETIM 7:
- EC001179 - Protective metallic hose
- UNSPSC:
- 39131706
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5535 >> Electrical conduit
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| S16/25M 7TCA296010R0037 EN_7TCA296010R0037.pdf | 78 Kbytes |
|
