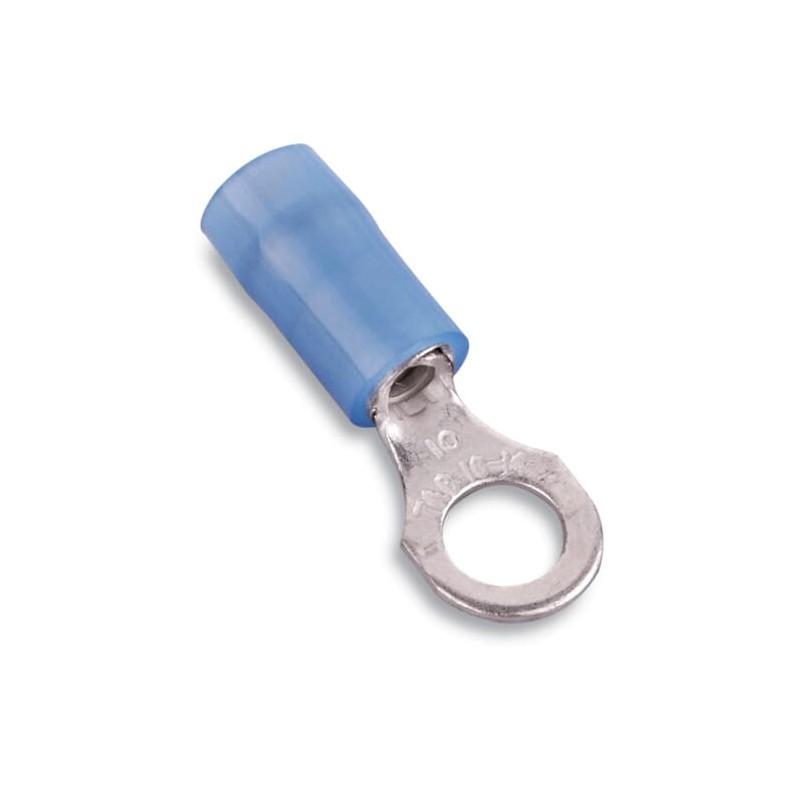

RB14-8 7TAI029810R0014 THOMAS AND BETTS INSNYL RING TERM 18-14 BLT No8 BLUE
RB14-8
7TAI029810R0014
THOMAS AND BETTS
100
INSNYL RING TERM 18-14 BLT No8 BLUE
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- RB14-8
- Product ID:
- 7TAI029810R0014
- EAN:
- 5414363131953
- Catalog Description:
- INSNYL RING TERM 18-14 BLT No8 BLUE
- Long Description:
- Nylon Insulated Ring Terminal, Length .89 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Ordering
- EAN:
- 5414363131953
Dimensions
- Product Net Weight:
- .003lb
1.361 g
Container Information
- Package Level 1 Units:
- 100 piece
- Package Level 1 Width:
- 1.1 in
28 mm
- Package Level 1 Height:
- 3 in
76 mm
- Package Level 1 Depth / Length:
- 2.09 in
53 mm
- Package Level 2 Units:
- 500 piece
- Package Level 2 Width:
- 9.3 in
236 mm
- Package Level 2 Height:
- 9 in
229 mm
- Package Level 2 Depth / Length:
- 14.9 in
378 mm
- Package Level 3 Units:
- 5000 piece
- Package Level 3 Width:
- 7.1 in
180 mm
- Package Level 3 Height:
- 9.1 in
231 mm
- Package Level 3 Depth / Length:
- 10.6 in
269 mm
Additional Information
- Brand / Label:
- Sta-Kon
- Color:
- Blue
- Material:
- Copper
- Number of Batteries:
- 0
- Product Name:
- ELECTRICAL TERMINAL
- Product Type:
- Nylon Insulated Ring Terminal
- Special Functions:
- Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
- Standards:
- UL E9809
- UPC:
- 786210804071
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
Certificates and Declarations (Document Number)
Classifications
- ETIM 6:
- EC001052 - Solderless copper terminals for copper conductors
- ETIM 7:
- EC001052 - Solderless copper terminals for copper conductors
- UNSPSC:
- 39121432
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4603 >> Electrical terminals
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| RB14-8 7TAI029810R0014 EN_7TAI029810R0014.pdf | 80 Kbytes |
|
