NPG-M161G 7TCA303070R0005 THOMAS AND BETTS QUICKCON M16 PRESS 5-10MM GR
NPG-M161G
7TCA303070R0005
THOMAS AND BETTS
10
QUICKCON M16 PRESS 5-10MM GR
QUICK CONN CG 16MM 5-10MM NYL GRY
Cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- NPG-M161G
- Product ID:
- 7TCA303070R0005
- EAN:
- 5415022403299
- Catalog Description:
- QUICK CONN CG 16MM 5-10MM NYL GRY
- Long Description:

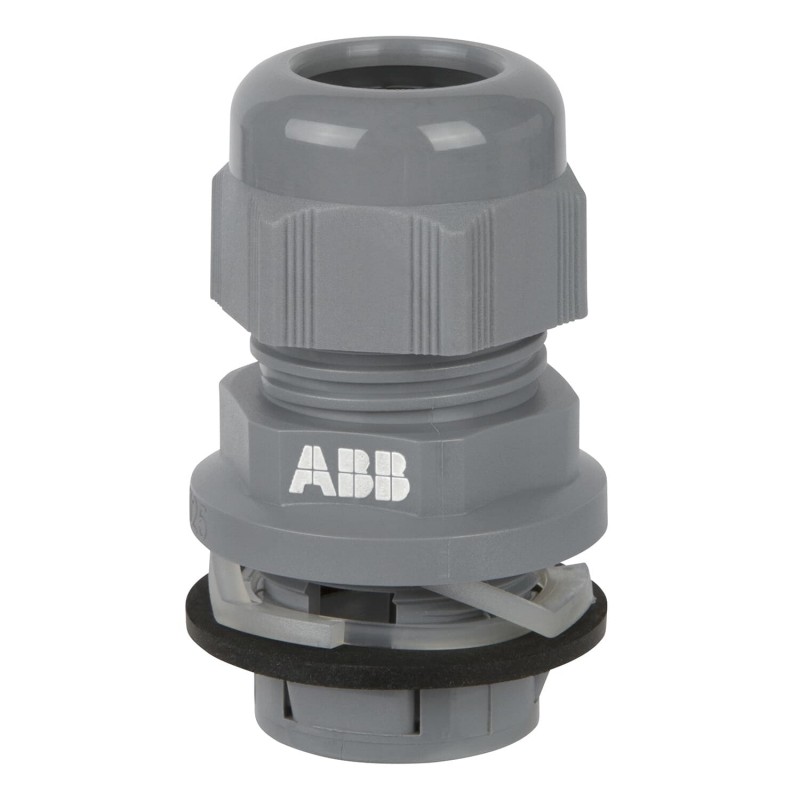

- Quick Connect Cable Gland, Thread Size M16, Cable Range 5 to 10mm, Thread Length 9mm, Nylon, Grey
Ordering
- EAN:
- 5415022403299
Dimensions
- Product Net Weight:
- .01lb
4.535 g
Container Information
- Package Level 1 Units:
- 10 piece
- Package Level 1 Width:
- 3.54 in
90 mm
- Package Level 1 Height:
- 3.54 in
90 mm
- Package Level 1 Depth / Length:
- 7.09 in
180 mm
- Package Level 2 Units:
- 40 piece
- Package Level 2 Width:
- 15.75 in
400 mm
- Package Level 2 Height:
- 11.02 in
280 mm
- Package Level 2 Depth / Length:
- 3.94 in
100 mm
Additional Information
- Application:
- General purpose, Ideal for Panel building and Volume Installers
- Brand / Label:
- ABB
- Color:
- Gray
- Material:
- Nylon
- Number of Batteries:
- 0
- Product Name:
- Nylon Cable Gland
- Product Type:
- Quick Connect Cable Gland
- Size:
- M16
- Standards:
- cULus, RoHS, WEEE, LVD
- Temperature Range:
- -20 to +100 °C
- UPC:
- 786210137919
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- TDS000036
- Declaration of Conformity - CE:
- 9AKK107492A9845
- Instructions and Manuals:
- NPG-M161G
Classifications
- ETIM 6:
- EC000441 - Cable screw gland
- ETIM 7:
- EC000441 - Cable gland
- UNSPSC:
- 39121431
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4601 >> Cable gland connector
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| NPG-M161G 7TCA303070R0005 EN_7TCA303070R0005.pdf | 80 Kbytes |
|
