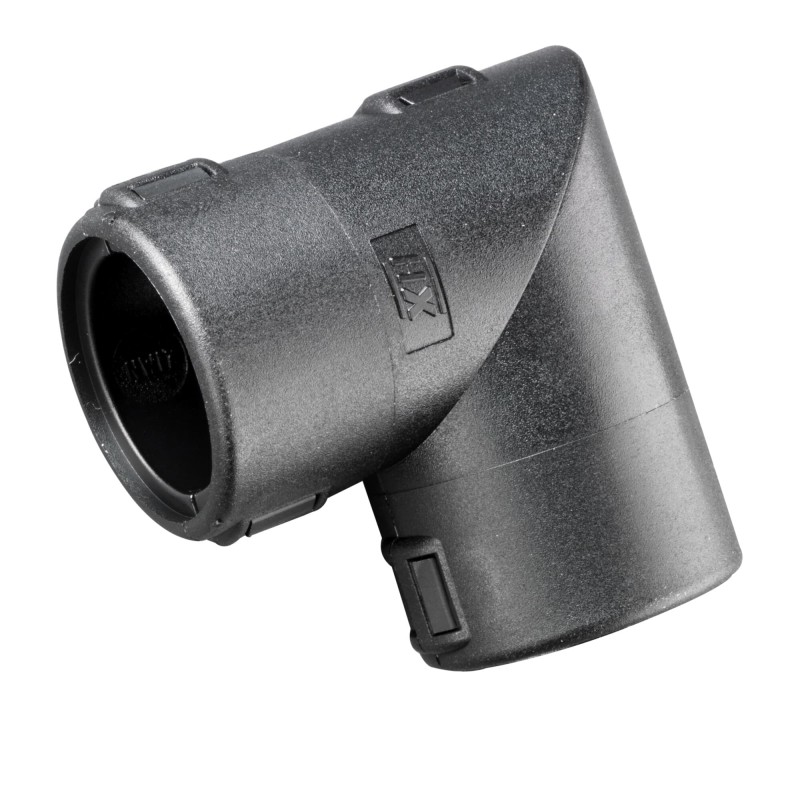

EPS2825 7TCA298010R0432 THOMAS AND BETTS ELBOW 90º HARNESSFLEX NYL NGR NC28-25
EPS2825
7TCA298010R0432
THOMAS AND BETTS
400
ELBOW 90º HARNESSFLEX NYL NGR NC28-25
HX NC28/NC25 CONNECTOR
Protective hose systems > Coupler for corrugated plastic hoses
Harnessflex
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- EPS2825
- Product ID:
- 7TCA298010R0432
- EAN:
- 5020963036521
- Catalog Description:
- HX NC28/NC25 CONNECTOR
- Long Description:
- Hinged Conduit Joiner, 90 Degree Elbow, Conduit Size A: NC28/NW23, Size B: NC25/NW22, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
Additional Information
- Application:
- Designed to Snap Together Over All Types of Slit and Unslit Conduit, Maintaining Maximum Conduit Bore
- Product Type:
- Hinged Conduit Joiner with 90 Degree Bend
Ordering
- EAN:
- 5020963036521
- UPC:
- 786210261195
- Customs Tariff Number:
- 3917400090
Dimensions
- Product Net Weight:
- .025lb
11.338 g
Technical
- Number of Batteries:
- 0
- Color:
- Black
- Material:
- Polyamide/Nylon
- Size:
- NC28/NW23 to NC25/NW22
Environmental
- WEEE Category:
- Product Not in WEEE Scope
Container Information
- Package Level 2 Units:
- 400 piece
- Package Level 2 Height:
- 14.37 in
365 mm
- Package Level 2 Depth / Length:
- 14.76 in
375 mm
- Package Level 2 Width:
- 15.16 in
385 mm
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- EPS2825
- Instructions and Manuals:
- EPS2825
- Declaration of Conformity - CE:
- 9AKK107492A9616
Classifications
- UNSPSC:
- 39131717
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
