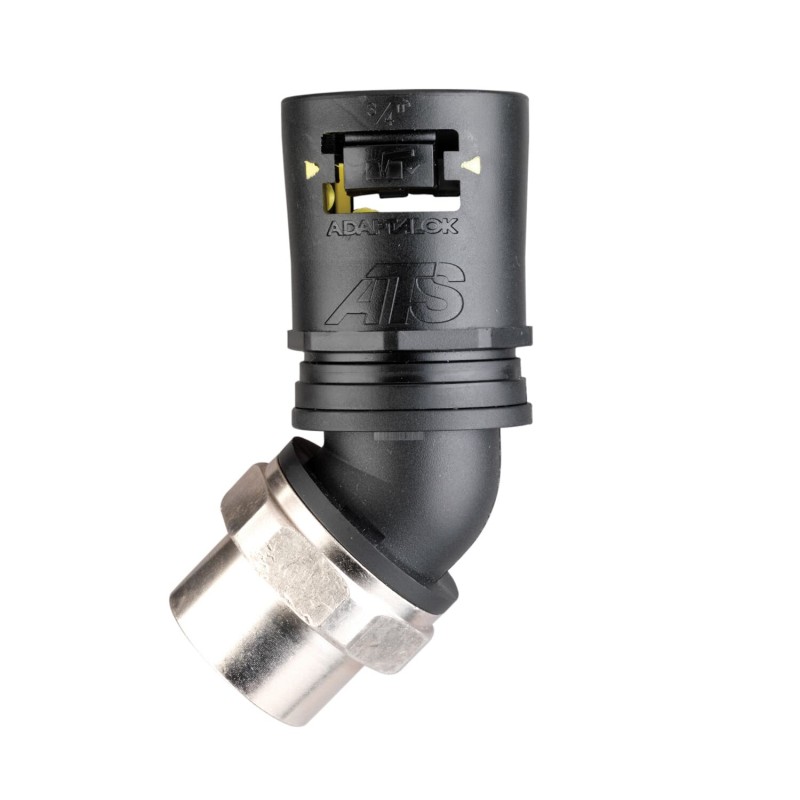

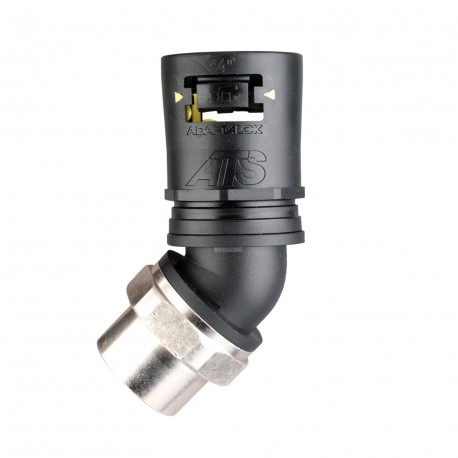

AT54/M50/SF45/BLY 7TCA296170R0769 THOMAS AND BETTS FITTING 45º THREAD HEM. GIR,M50,DN54,BLACK
AT54/M50/SF45/BLY
7TCA296170R0769
THOMAS AND BETTS
2
FITTING 45º THREAD HEM. GIR,M50,DN54,BLACK
45D SWL PA66/NPB FTG M50 54MM-BLY
Protective hose systems > Screw connection for corrugated plastic hose
Adaptaflex cable protection and cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- AT54/M50/SF45/BLY
- Product ID:
- 7TCA296170R0769
- EAN:
- 5020963045400
- Catalog Description:
- SWV.FEM.M50 45D IP66.69/NC54 BK/YW
- Long Description:
- Adaptalok ATS, 45 Degree Conduit Fitting, Swivel Internal Female Thread, Nominal Conduit Size 54mm, M50 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Black with Yellow Elastomer
Additional Information
- Application:
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Product Type:
- Conduit Fitting with Metric Threads
Ordering
- EAN:
- 5020963045400
- UPC:
- 786210283791
- Customs Tariff Number:
- 3917400090
Technical
- Number of Batteries:
- 0
- Color:
- Black/Yellow Elastomer
- Material:
- Polyamide/Nylon 6.6
- Size:
- NC 54mm
Environmental
- WEEE Category:
- Product Not in WEEE Scope
Container Information
- Package Level 1 Units:
- 2 piece
- Package Level 1 Height:
- 11.81 in
300 mm
- Package Level 1 Depth / Length:
- 1 in
25 mm
- Package Level 1 Width:
- 7.87 in
200 mm
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- AT54/M50/SF45/BLY
- Instructions and Manuals:
- AT54/M50/SF45/BLY
- Declaration of Conformity - CE:
- 9AKK107492A9618
- RoHS Information:
- 9AKK107992A8994
- RoHS Date:
- 9AKK107992A8994
- REACH Declaration:
- 9AKK107992A8994
Classifications
- ETIM 8:
- EC001176 - Screw connection for corrugated plastic hose
- UNSPSC:
- 39121311
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| AT54/M50/SF45/BLY 7TCA296170R0769 EN_7TCA296170R0769.pdf | 79 Kbytes |
|
