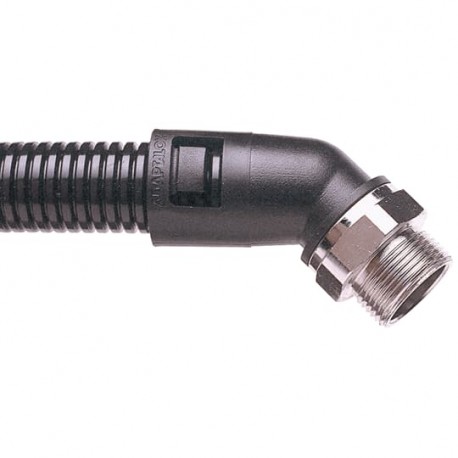

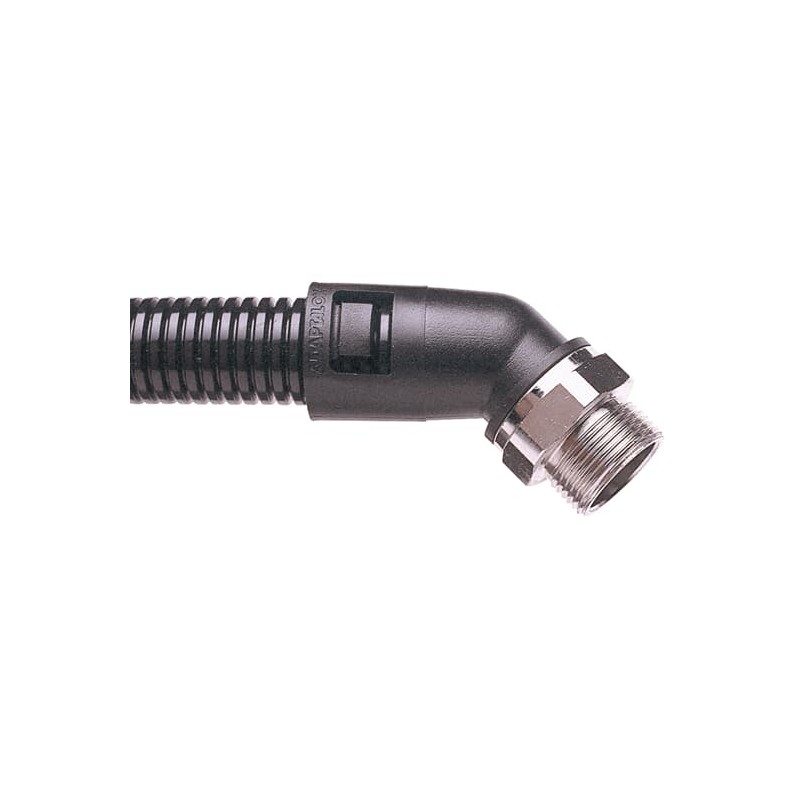

AL42/PG36/S45/BL 7TCA296000R1142 THOMAS AND BETTS FITTING 45 ° MALE THREAD GIR PG 36
AL42/PG36/S45/BL
7TCA296000R1142
THOMAS AND BETTS
2
FITTING 45 ° MALE THREAD GIR PG 36
PG36 SWIVEL ALOK 45DEG ELBOW
Protective hose systems > Screw connection for corrugated plastic hose
Adaptaflex cable protection and cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- AL42/PG36/S45/BL
- Product ID:
- 7TCA296000R1142
- EAN:
- 5020963027017
- Catalog Description:
- PG36 SWIVEL ALOK 45DEG ELBOW
- Long Description:
- 45 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 42mm, PG36 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread, Black
Ordering
- EAN:
- 5020963027017
- Customs Tariff Number:
- 3917400090
Dimensions
- Product Net Weight:
- .32lb
145.125 g
Container Information
- Package Level 2 Units:
- 2 piece
- Package Level 2 Width:
- 1 in
25 mm
- Package Level 2 Height:
- 1 in
25 mm
- Package Level 2 Depth / Length:
- 1 in
25 mm
Additional Information
- Application:
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Brand / Label:
- Adaptaflex
- Cable Entry Position:
- PG36 Thread
- Color:
- Black
- Material:
- Polyamide/Nylon 6.6
- Number of Batteries:
- 0
- Product Name:
- plastic fitting for conduit
- Product Type:
- Conduit Fitting with PG Threads
- Size:
- NC 42mm
- UPC:
- 786210280950
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- AL42/PG36/S45/BL
- Declaration of Conformity - CE:
- 9AKK107492A9618
- Instructions and Manuals:
- AL42/PG36/S45/BL
Classifications
- ETIM 6:
- EC001176 - Screw connection for corrugated plastic hose
- ETIM 7:
- EC001176 - Screw connection for corrugated plastic hose
- UNSPSC:
- 39121311
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4441 >> Electrical fittings
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| AL42/PG36/S45/BL 7TCA296000R1142 EN_7TCA296000R1142.pdf | 84 Kbytes |
|
