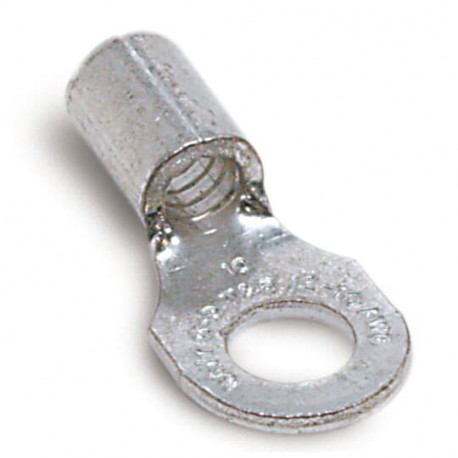

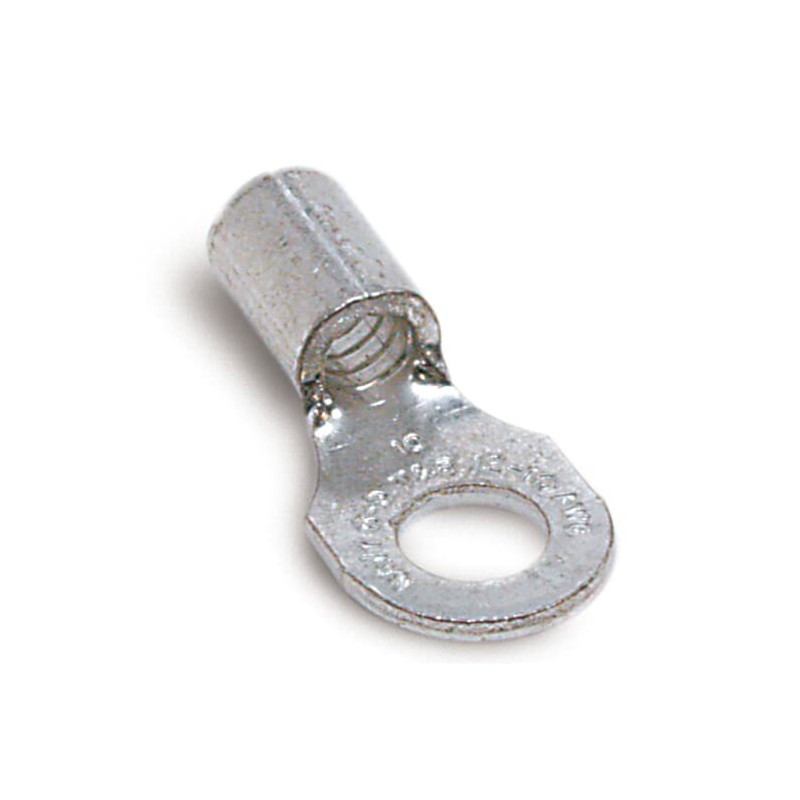

A18-8 7TAI029580R0007 THOMAS AND BETTS RING TERMINAL S/AISLAM 22-16 8 MET
A18-8
7TAI029580R0007
THOMAS AND BETTS
100
RING TERMINAL S/AISLAM 22-16 #8 MET
NON-INS RING TERM, 22-16, #8, METAL
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- A18-8
- Product ID:
- 7TAI029580R0007
- EAN:
- 5414363147169
- Catalog Description:
- NON-INS RING TERM, 22-16, #8, METAL
- Long Description:
- Non-Insulated Ring Terminal, Length .75 Inches, Width .31 Inches, Bolt Hole #8, Wire Range #22-#16 AWG, Copper, Tin Plated
Ordering
- EAN:
- 5414363147169
- Customs Tariff Number:
- 8536904000
Dimensions
- Product Net Weight:
- .002lb
.907 g
Container Information
- Package Level 1 Units:
- 100 piece
- Package Level 1 Width:
- 1.63 in
41 mm
- Package Level 1 Height:
- 3.5 in
89 mm
- Package Level 1 Depth / Length:
- 2.63 in
67 mm
- Package Level 2 Units:
- 500 piece
- Package Level 2 Width:
- 9.4 in
239 mm
- Package Level 2 Height:
- 8.9 in
226 mm
- Package Level 2 Depth / Length:
- 15.1 in
384 mm
- Package Level 3 Units:
- 5000 piece
- Package Level 3 Width:
- 6.9 in
175 mm
- Package Level 3 Height:
- 5.4 in
137 mm
- Package Level 3 Depth / Length:
- 8.39 in
213 mm
Additional Information
- Brand / Label:
- Sta-Kon
- Color:
- Metallic
- Material:
- Copper
- Number of Batteries:
- 0
- Product Name:
- ELECTRICAL TERMINAL
- Product Type:
- Non-Insulated Ring Terminal
- Special Functions:
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
- Standards:
- UL E9809
- UPC:
- 786210803005
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
Certificates and Declarations (Document Number)
Classifications
- ETIM 6:
- EC001052 - Solderless copper terminals for copper conductors
- ETIM 7:
- EC001052 - Solderless copper terminals for copper conductors
- UNSPSC:
- 39121432
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4603 >> Electrical terminals
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| A18-8 7TAI029580R0007 EN_7TAI029580R0007.pdf | 87 Kbytes |
|
