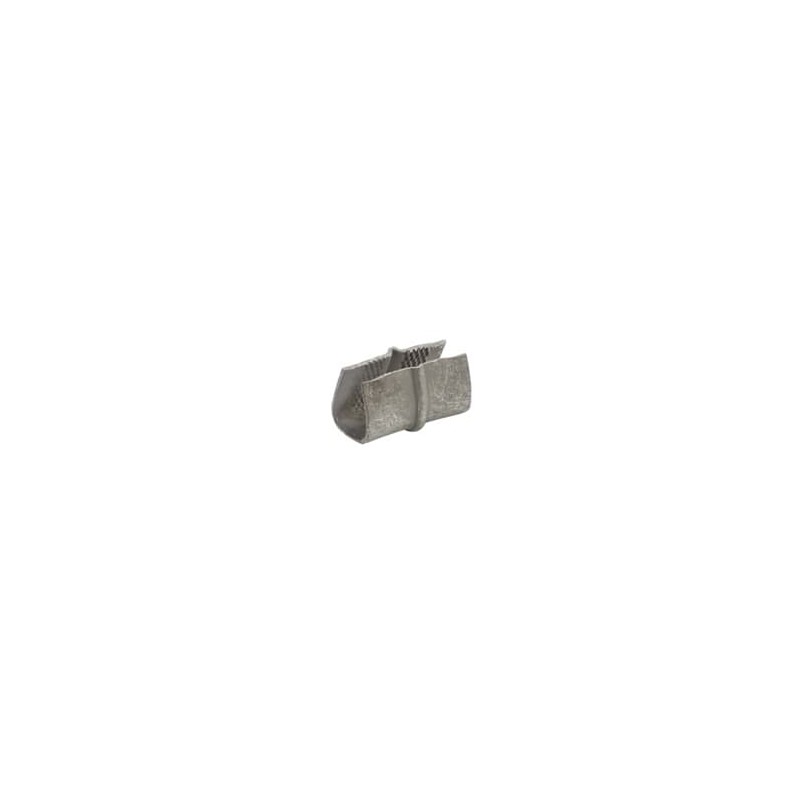

220023 7TAI029020R0014 THOMAS AND BETTS INSUL PRC WIRE SPLICE CU 2-1/0 AWG
220023
7TAI029020R0014
THOMAS AND BETTS
25
INSUL PRC WIRE SPLICE CU 2-1/0 AWG
DRAGON T. SINGLE CONNECTOR 115MM2
Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲Ordering
| EAN: | 5414363111917 |
| Customs Tariff Number: | 8536904000 |
Dimensions
| Product Net Weight: | .105 lb 47.619 g |
Container Information
| Package Level 1 Units: | 25 piece |
| Package Level 1 Width: | 4.6 in 117 mm |
| Package Level 1 Height: | 3.3 in 84 mm |
| Package Level 1 Depth / Length: | 6.2 in 157 mm |
| Package Level 2 Units: | 250 piece |
| Package Level 2 Width: | 11 in 279 mm |
| Package Level 2 Height: | 10.8 in 274 mm |
| Package Level 2 Depth / Length: | 13 in 330 mm |
Additional Information
| Application: | For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. |
| Brand / Label: | Dragon Tooth |
| Material: | Copper |
| Number of Batteries: | 0 |
| Product Name: | STA-KON AND CATAMOUNT TERMINAL |
| Product Type: | Splices |
| Special Functions: | Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. |
| Standards: | UL E9809 |
| Surface Finishing: | Tin Plated |
| UPC: | 786210061467 |
Certificates and Declarations (Document Number)
| Data Sheet, Technical Information: | 220023 |
| Instructions and Manuals: | 220023 |
Classifications
| ETIM 6: | EC001059 - Crimp splices for copper conductor |
| ETIM 7: | EC001059 - Crimp splices for copper conductor |
| UNSPSC: | 39121449 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4669 >> Wire or cable compression splice |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| 220023 7TAI029020R0014 7TAI029020R0014_220023.pdf | 188 Kbytes |
|
