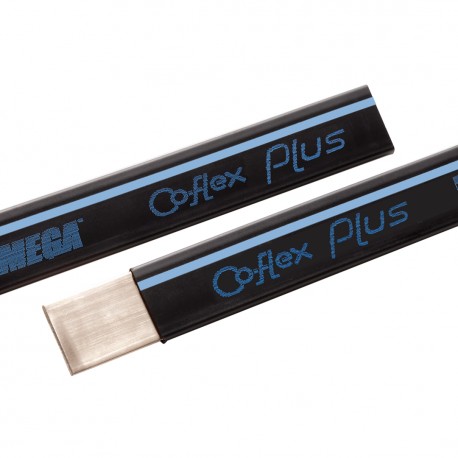

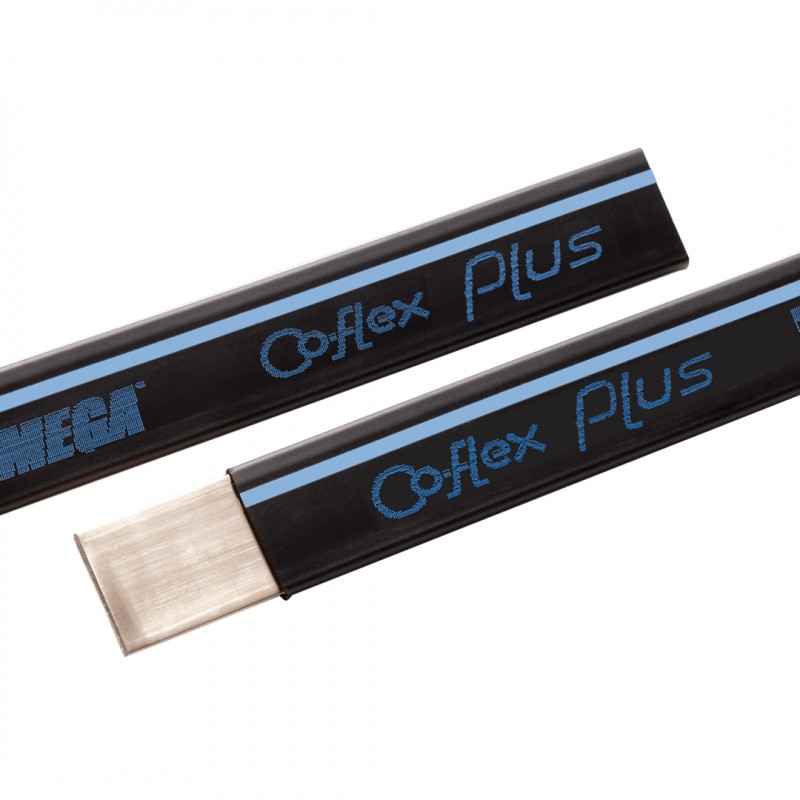

CFP 4X40X1 CFX5165 TEKNOMEGA INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 4X40X1 LENGTH 2MT
CFP 4X40X1
CFX5165
TEKNOMEGA
3
INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 4X40X1 LENGTH 2MT
PLETINA AISLADA FLEXIBLE CO-FLEX PLUS 4X40X1
COFLEX PLUS – Flexible copper insulated plates
Low-voltage industrial components > Busbar
Home > TEKNOMEGA
Brand new product in its original packaging covered by the warranties and certifications provided by TEKNOMEGA
Related products
▲Best sellers
▲More info
▲Specifications
Driver
Tinned electrolytic copper:
Cu-ETP – EN 13599
Thickness of the blades:
0.5 - 0.8 - 1 mm
Isolation
TPE Compound
Black color with blue line.
Low smoke emission
Self-extinguishing: UL 94-V0
Halogen-free
Thickness: 1.9mm
Dielectric strength: 20 kV/mm
Class II according to Par. 8.4.4 IEC 61439-1
Recyclable
Finished product
Rated voltage:
1000 V AC / 1500 V DC
Working temperatures:−40 °C ÷ +140 °C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE POWER SOLUTIONS TEKNOMEGA EN.pdf | 19 Mbytes |
|
| PDF CATALOGUE SOLUTIONS PHOTOVOLTAIC PANELS TEKNOMEGA EN.pdf | 29 Mbytes |
|
| PDF CATALOGUE TEKNOMEGA SOLUTIONS INDUSTRIAL INSTALLATION EN.pdf | 14 Mbytes |
|
