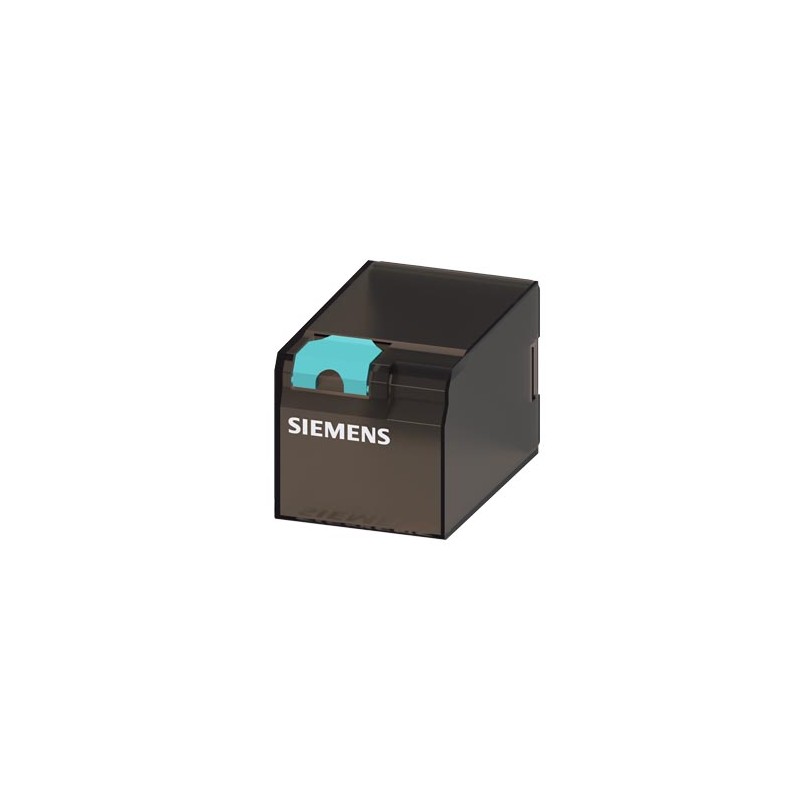

LZX:MT328024 SIEMENS Plug-in relay, 3 changeover contacts with LED, 24 V AC, 10 A Width 38 mm, MT series View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

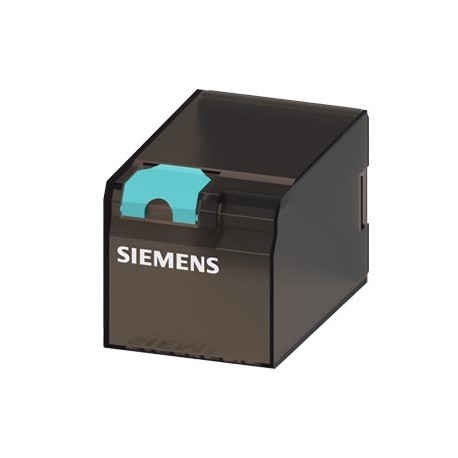

LZX:MT328024 SIEMENS Plug-in relay, 3 changeover contacts with LED, 24 V AC, 10 A Width 38 mm, MT series

LZX:MT328024

SIEMENS

Plug-in relay, 3 changeover contacts with LED, 24 V AC, 10 A Width 38 mm, MT series

More details


Relays > Switching relay

CONTROL AND CONTACTORS > Function relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Plug-in relay, 3 changeover contacts with LED, 24 V AC, 10 A Width 38 mm, MT series
product brand nameSIRIUS
product designationPlug-in relay
product type designationLZX
General technical data
percental drop-out voltage related to the input voltage30 %
shock resistance according to IEC 60068-2-2710g / 11 ms
vibration resistance according to IEC 60068-2-630 ... 150 Hz: 2g
operating frequency without load6 000 1/h
operating frequency with load1 200 1/h
switching behaviormonostable
design of the switching functionchangeover switch
design of the switching function positively drivenNo
mechanical service life (switching cycles) typical20 000 000
thermal current10 A
reference code according to IEC 81346-2K
Substance Prohibitance (Date)05/01/2012
Control circuit/ Control
control supply voltage at AC
● at 50 Hz rated value24 V
● at 60 Hz rated value24 V
control supply voltage frequency
● 1 rated value50 Hz
● 2 rated value60 Hz
supply voltage frequency for auxiliary and control circuit rated value50 ... 60 Hz
operating range factor control supply voltage rated value at AC at 50 Hz
● initial value0.9
● full-scale value1.1
operating range factor control supply voltage rated value at AC at 60 Hz
● initial value0.9
● full-scale value1.1
design of the relay operating mechanismpoled
product component plug-in socketNo
Auxiliary circuit
type of switching contactChangeover contact
material of switching contactsAgNi 90/10
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts3
Main circuit
type of voltageAC
Connections/ Terminals
product function removable terminalNo
Installation/ mounting/ dimensions
mounting positionany
fastening methodbase mounting
height36.5 mm
width36.5 mm
depth69 mm
Ambient conditions
ambient temperature
● during operation-40 ... +50 °C
● during storage-40 ... +60 °C
● during transport-40 ... +60 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

Confirmation

UL

VDE

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Derating
last modified:1/12/2021
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)LZX:MT328024
Product DescriptionPlug-in relay, 3 changeover contacts with LED, 24 V AC, 10 A Width 38 mm, MT series
Product familyLZS coupling relays with plug-in relays
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
Surcharge for Raw MaterialsNone
Metal FactorLD------
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)0,088 Kg
Packaging Dimension198,00 x 223,00 x 83,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209568372
UPC804766904899
Commodity Code85364190
LKZ_FDB/ CatalogIDCC-IC10
Product Group5816
Group CodeR711
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-16-01
eClass7.127-37-16-01
eClass827-37-16-01
eClass927-37-16-01
eClass9.127-37-16-01
ETIM5EC001437
ETIM6EC001437
ETIM7EC001437
ETIM8EC001437
IDEA45367
UNSPSC1539-12-23-31

ETIM data

ETIM: EC001437 - Switching relay

Value Unit
With LED indication (EF005950) -
Degree of protection (IP) (EF005474) -
Type of electric connection (EF003961) -
With detachable clamps (EF003340) false
Nominal current (EF000001) -A
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 3
With forced-guided contacts (EF003357) false
Type of switch contact (EF003358) Single contact
Complete with socket (EF003359) false
Width (EF000008) 36.5mm
Height (EF000040) 36.5mm
Depth (EF000049) 69.0mm
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V



Datasheet - PDF

▲
