LZS:RT4B4S15
SIEMENS
5

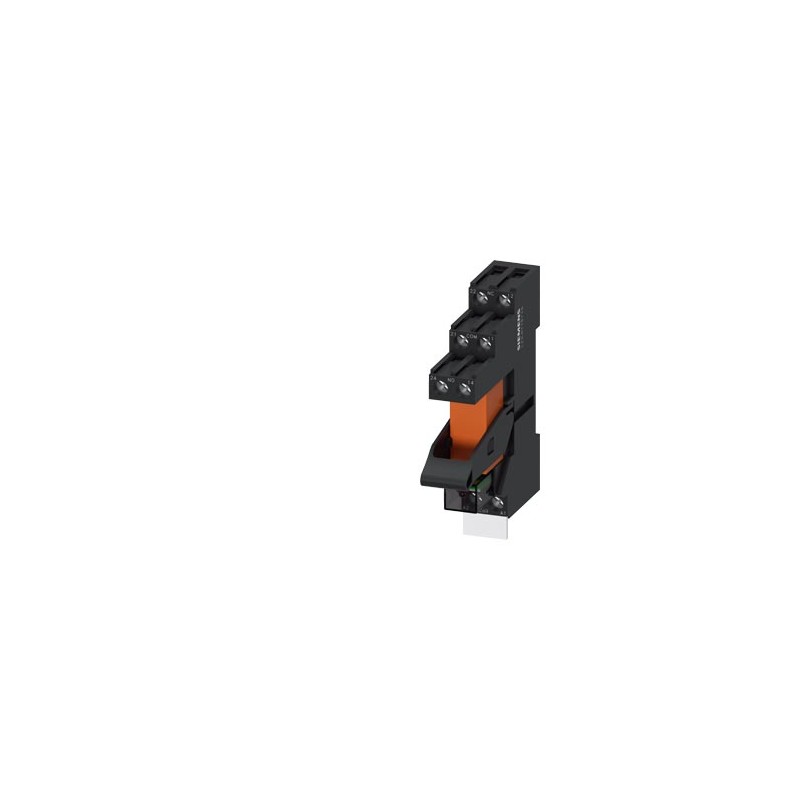

Plug-in relay complete unit 2 W, 115 V AC LED module red Socket with logic isolation screw terminal
Relays > Switching relay
CONTROL AND CONTACTORS > Function relays
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | LZS:RT4B4S15 | ||||||||||||||||||||||||||||||||||||
Product Description | Plug-in relay complete unit 2 W, 115 V AC LED module red Socket with logic isolation screw terminal | ||||||||||||||||||||||||||||||||||||
Product family | Coupling relays | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41H / 41H | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | LB------ | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : EAR99 | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 2 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,064 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 85,50 x 103,00 x 77,50 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Minimum order quantity | 5 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209674714 | ||||||||||||||||||||||||||||||||||||
UPC | 662643158311 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 5816 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | ||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Type of electric connection (EF003961) | Screw connection | |
With detachable clamps (EF003340) | false | |
Nominal current (EF000001) | - | A |
Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
Voltage type for actuating (EF008242) | AC | |
Drive, polarization (EF003355) | Polarized | |
Drive, switching attitude (EF003356) | Mono stable | |
Number of contacts as normally closed contact (EF008255) | 0 | |
Number of contacts as normally open contact (EF008256) | 0 | |
Number of contacts as change-over contact (EF008257) | 2 | |
With forced-guided contacts (EF003357) | false | |
Type of switch contact (EF003358) | Single contact | |
Complete with socket (EF003359) | true | |
With LED indication (EF005950) | true | |
Degree of protection (IP) (EF005474) | IP20 | |
Width (EF000008) | 15.5 | mm |
Height (EF000040) | 71.0 | mm |
Depth (EF000049) | 77.0 | mm |
Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes | |
LZS:RT4B4S15 LZS:RT4B4S15 EN_LZS:RT4B4S15.pdf | 154 Kbytes |
